Model
Line length
[m]
Delivery line [mm] Liquid line [mm]
Refrigerant
R410A per
metre of line
[g/m]
Refrigerant
R410A per
metre of line
[g/m]
C1 C2 C1 C2 C1 C2
NXW0500E
0-10 28 22 28 22 610 380
10-20 28 22 28 22 610 380
20-30 28 22 28 22 610 380
NXW0550E
0-10 28 22 28 22 610 380
10-20 28 22 28 22 610 380
20-30 28 22 28 22 610 380
NXW0600E
0-10 28 28 28 28 610 610
10-20 28 28 28 28 610 610
20-30 28 28 28 28 610 610
NXW0650E
0-10 28 28 28 28 610 610
10-20 28 28 28 28 610 610
20-30 28 28 28 28 610 610
NXW0700E
0-10 28 28 28 28 610 610
10-20 28 28 28 28 610 610
20-30 28 28 28 28 610 610
NXW0750E
0-10 28 28 28 28 610 610
10-20 28 35 28 28 610 640
20-30 28 35 28 28 610 640
NXW0800E
0-10 28 28 28 28 610 610
10-20 35 35 28 28 640 640
20-30 35 35 28 28 640 640
NXW0900E
0-10 28 35 28 35 920 640
10-20 35 35 28 35 950 640
20-30 35 35 28 35 950 640
NXW1000E
0-10 35 35 35 35 950 950
10-20 35 35 35 35 950 950
20-30 35 35 35 35 950 950
NXW1250E
0-10 35 42 35 35 950 990
10-20 35 42 35 35 950 990
20-30 35 42 35 35 950 990
NXW1400E
0-10 42 42 35 35 990 990
10-20 42 42 35 35 990 990
20-30 42 42 35 35 990 990
Key
C1 = Cooling circuit 1
C2 = Cooling circuit 2
Tcond = 45°C
Tevap = 4°C
If the evaporator is positioned lower
than the condenser, drain-taps must
be available on the suction line to
draw the oil towards the compressor.
By "line length" we mean the dis-
tance between the units, measured
on the liquid line. For further informa-
tion, contact the head office.
UNITÀ CONDENSANTE
0,5%
4m
0,5%
CONDENSING UNIT
UNITES DE CONDENSATION
KONDENSATOREINHEITEN
EVAPORATORE
EVAPORATOR
EVAPORATEUR
VERDAMPFER

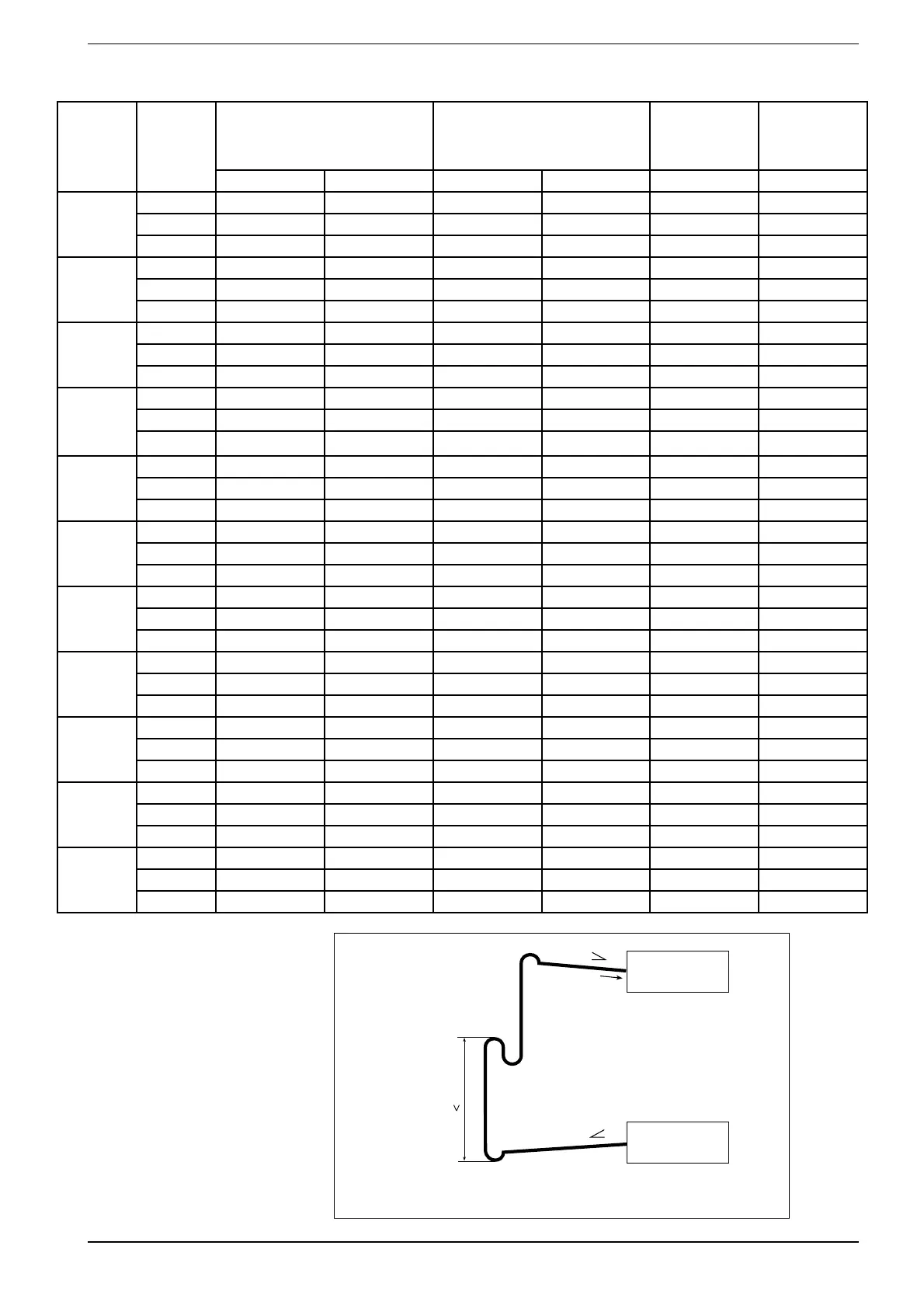

13. COOLING LINES
29
INXWPY. 1004. 4438805_00
