AERMEC NXW 0900 User Manual

Version STANDARD 0750,0800,1000,1250,1400
D
B
CA
E
18
Uscita evaporatore
Uscita condensatore
Ingresso condensatore
Ingresso evaporatore
A
O
N
C
F
E
M H
L
D G
B
I

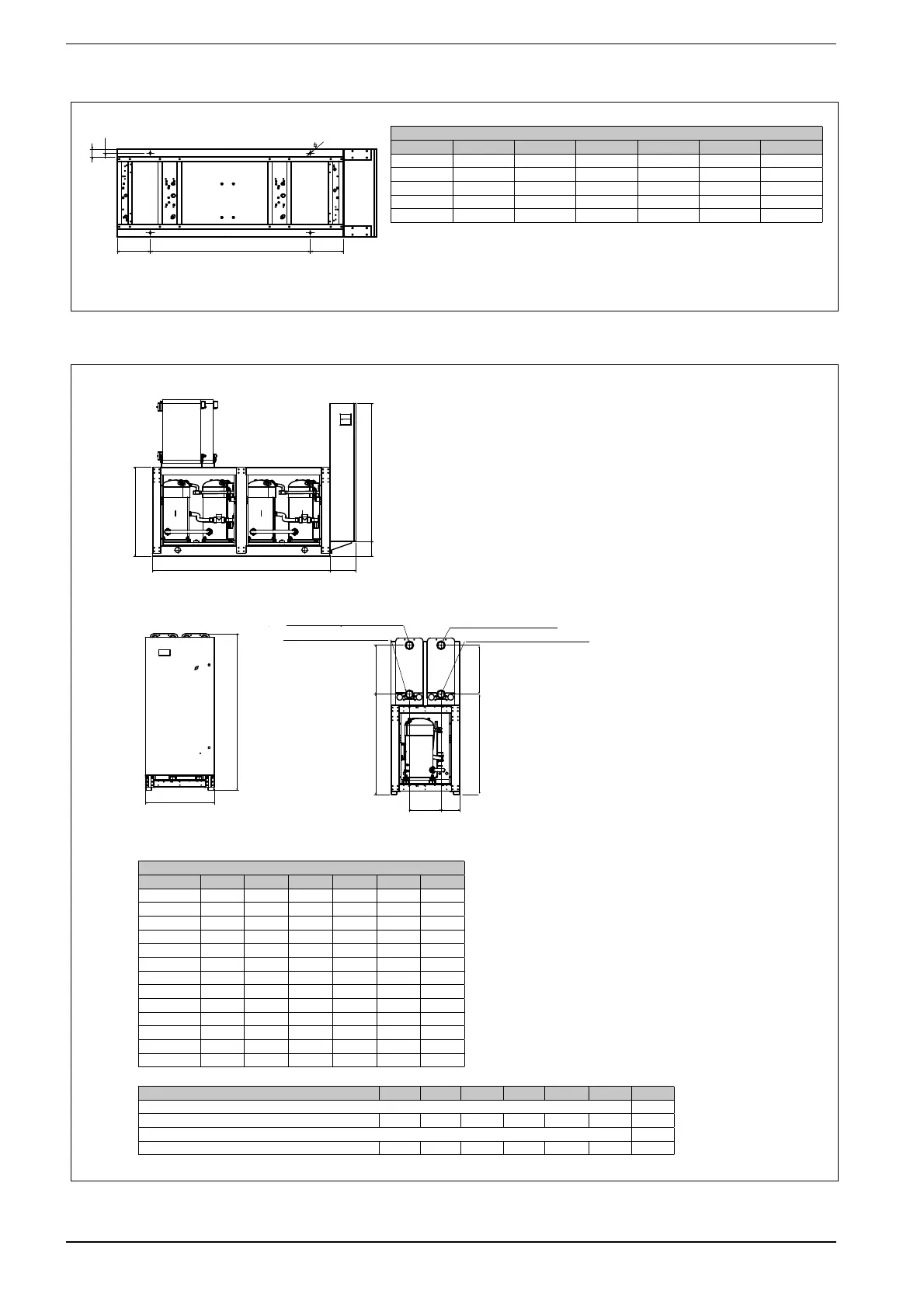

POSITION
Model 0750 0800 0900 1000 1250 1400
A 1600 1600 1600 1600 1600 1600
B 1035 1035 1035 1035 1035 1035
C 1790 1790 2054 2054 2054 2054
D - - 568 568 568 568
E - - 1820 1820 1820 1820
F 800 800 800 800 800 800
G 369 369 369 - - -
H 1125 1125 1125 - - -
I 343 343 358 - - -
L 225 225 225 216 216 216
M - - 1165 1165 1165 1165
N 300 300 300 300 300 300
O - - 175 175 175 175
AVX
Model 0750 0800 0900 1000 1250 1400
A 300 300 300 300 300 300
B 300 300 300 300 300 300
C 1190 1190 1454 1464 1464 1464
D 353535353535
E 707070707070
Model U.M. 0750 0800 0900 1000 1250 1400
EVAPORATOR (PLATES)
Hydraulic connection Victaulic IN/OUT Ø 2"1/2 2"1/2 2"1/2 3" 3" 3"
CONDENSER (PLATES)
Hydraulic connection Victaulic IN/OUT Ø 2"1/2 2"1/2 2"1/2 3" 3" 3"
INLET EVAPORATOR
INLET CONDENSER
OUTLET CONDENSER
OUTLET EVAPORATOR
36
INXWPY. 1004. 4438805_00

AERMEC NXW 0900 Specifications

General

Brand	AERMEC
Model	NXW 0900
Category	Chiller
Language	English
