Warning: The unit must be installed hori-
zontal; check with a spirit level.
Warning: Use expansion plugs suitable for
the mounting material.
Warning: The wall must be capable of
safely carrying the weight of the unit.
RePuro100-170
To wall mount the unit it is necessary to
use the 4 mounting brackets supplied
loose.
Warning: The unit has to be fixed to the
wall with 4 expansion plugs (not supplied).
Installation of the unit
- fit the 4 mounting brackets
- determine the exact wall location where
the unit is to be installed
RePuro250-350-450-550-650
To wall mount the unit use the plate pro-
vided.
The unit is provided with the plate located
on the rear side.
Warning: the position of the plate during
shipment does not correspond to the final
installation position (see drawings).
The wall mount plate must be fixed to the
wall with 4 expansion plugs (not supplied).
The plate must be installed horizontal;
check with a spirit level.
Installation of the unit
- determine the exact wall location where
the unit is to be installed
- fix the wall mounting plate to the wall
with 4 expansion plugs (not supplied). En-
sure that the plate is rigidly mounted to
the wall.
- hook the unit onto the plate, ensuring
that the unit is correctly located.

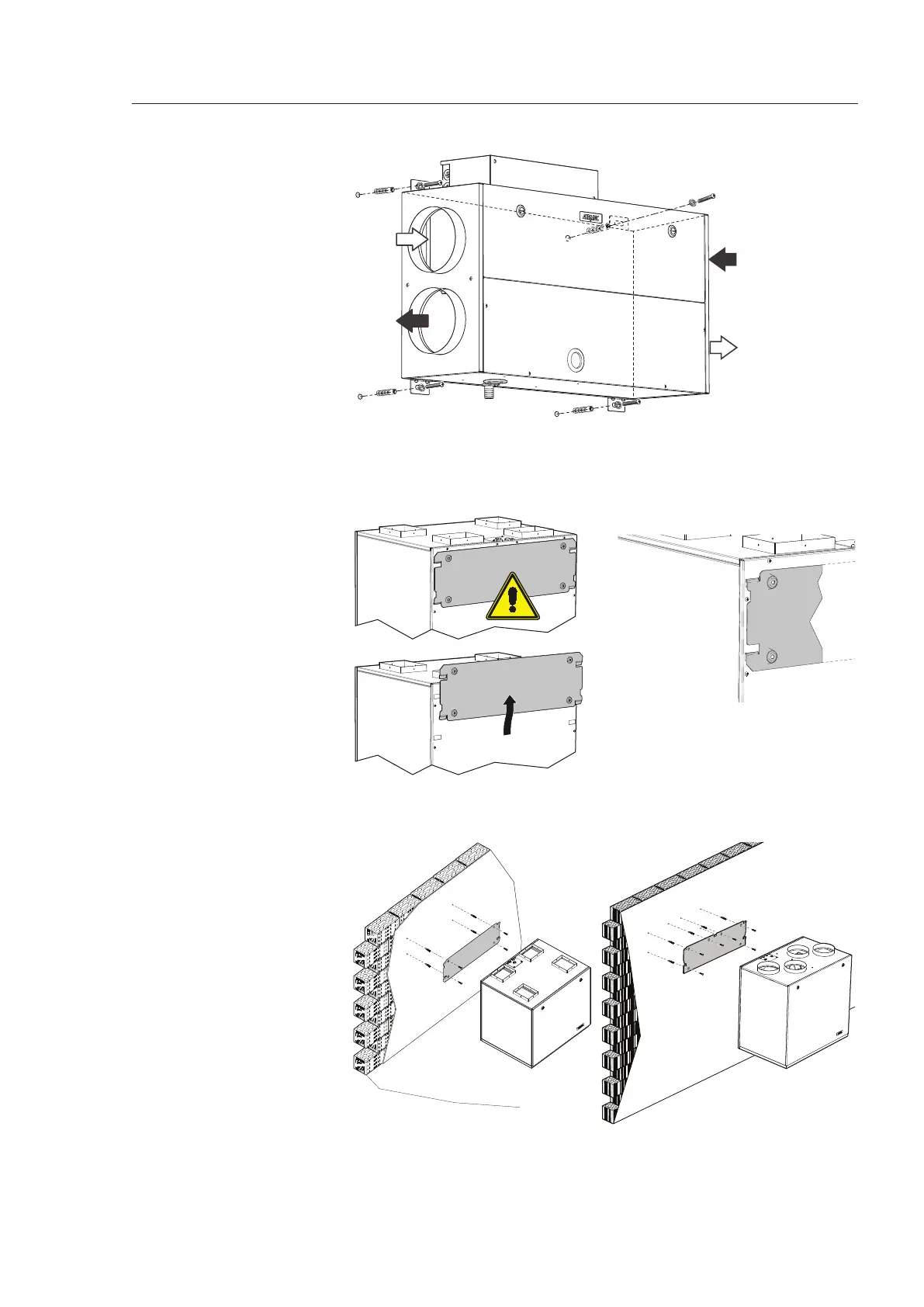

RePuro250 - RePuro350
RePuro450 - RePuro550 - RePuro650
RePuro250 - RePuro350 RePuro450 - RePuro550 - RePuro650
RePuro100 - RePuro170
13.3. WALL INSTALLATION
