IREPPY - 1404 - 4238051_01

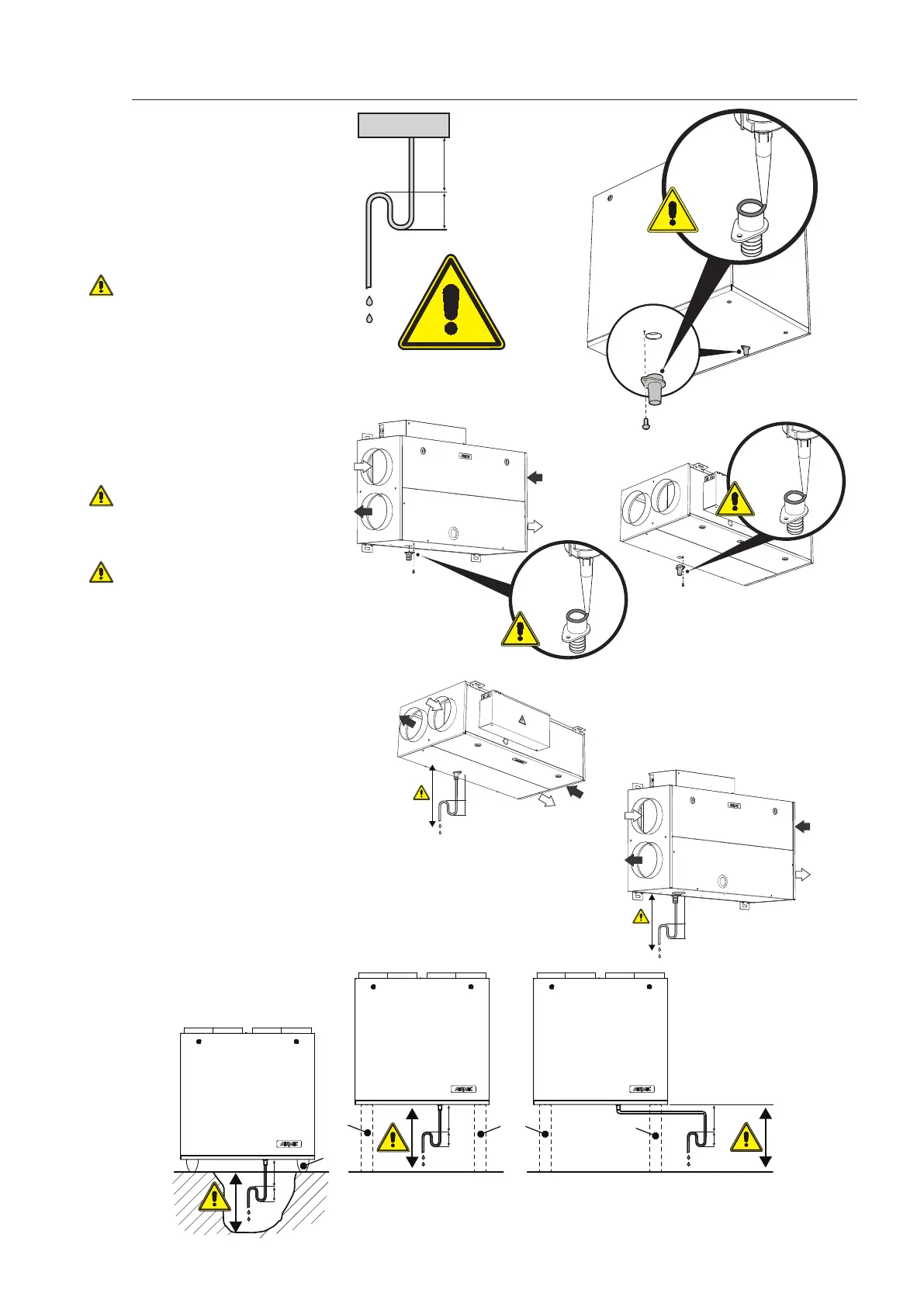

The condensate discharge connection has an
external diameter of 20 mm.
The condensate discharge system must be
sized for the condensate flow produced by
the unit and any other unit (recovery unit,
plenum, etc.) connected to the same system.
Procedure for mounting the connection:
- Identify the condensate discharge hole and
remove the plug.
Warning: RePuro100 and RePuro170
have 2 condensate drain: one for vertical
and one for horizontal installation. Utilise
the lower located condensate drain.
- Seal the connection between the drain
tray and the connector with a ring of sili-
cone as shown in the drawings.
- Install the condensate drain connector
on the base of the unit, fix with the screw.
- Connect the connector to the conden-
sate drain system.
WARNING: It is mandatory to pro-
vide a trap to ensure the correct opera-
tion of the unit and prevent the occur-
rence of unpleasant odours.
WARNING: It is mandatory to re-
spect the dimensions shown in the draw-
ings.
13.7. CONDENSATE DISCHARGE
100mm
60mm
RePuro
100
60
100
60
SSR SSR
100
60
AWM
SSR
SSR
100
60
100
60
