AERMEC RePuro 650 - Floor Installation

46
IREPPY - 1404 - 4238051_01
Warning: The unit must be installed hori-
zontal; check with a spirit level.
Warning: The floor must be capable of
safely supporting the weight of the unit.
Warning: Before proceeding with the in-
stallation refer to the accessory manuals.
Warning: Before proceeding with the in-
stallation apply the correct accessory for
the type of installation.
RePuro250-350-450-550-650

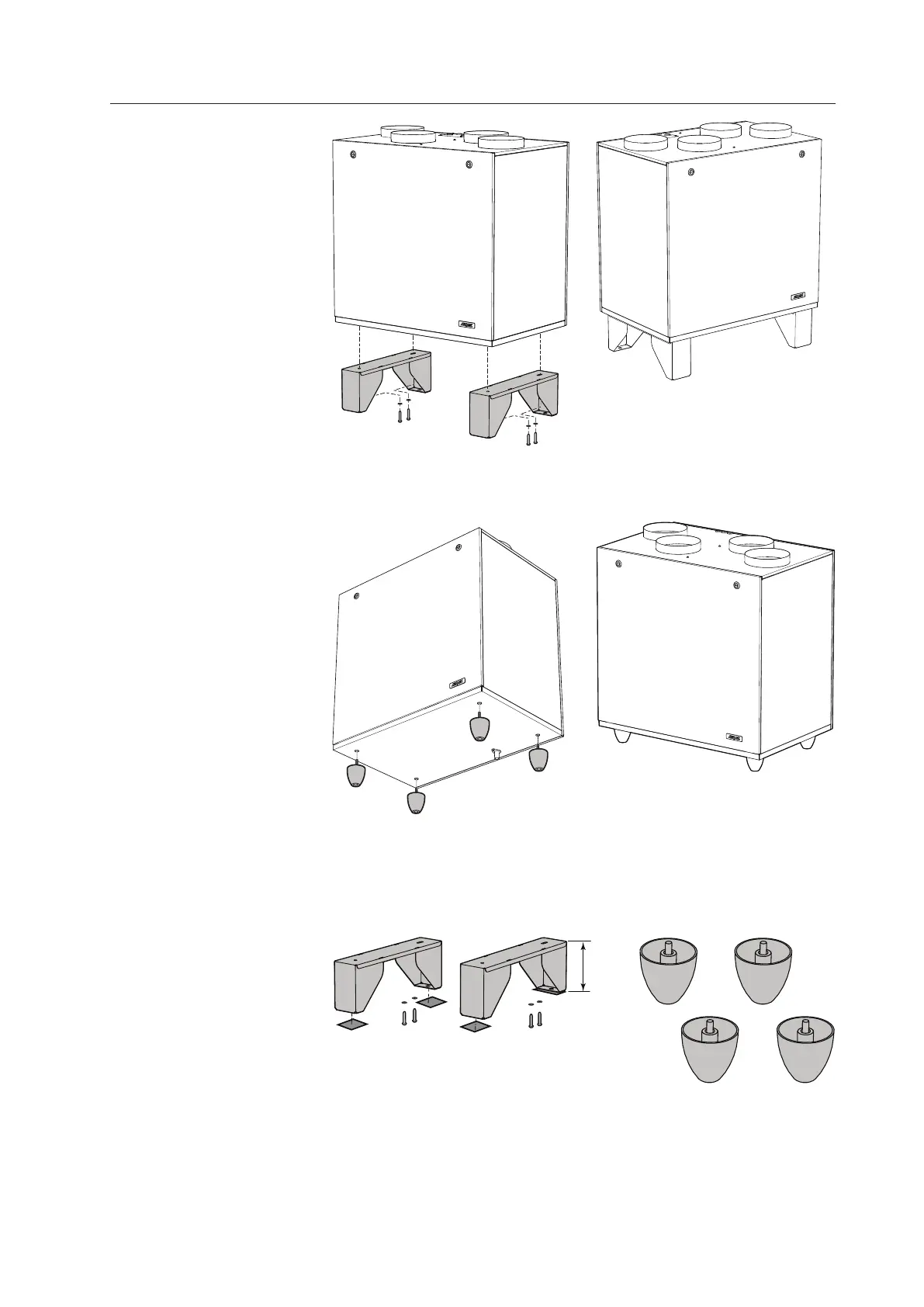

To floor mount the unit it is necessary to
use the appropriate accessories:
• for installation with the condensate
drain trap concealed in the floor use the
AVM accessory (anti-vibration feet.
• for installation with the condensate
drain trap between the unit and the floor
use the SSR accessory (brackets with anti-
vibration).
The brackets with anti-vibration (SSR) can
be:
• placed directly on the floor.
• placed directly on the floor and fixed
with 4 expansion plugs (not supplied).
Installation of the unit
- Apply to the unit the accessories (anti-
vibration feet or brackets with anti-vibra-
tion, plenum, etc.)
- determine the exact floor location where
the unit is to be installed
- provide the air ducting, the electrical
connections and the condensate drain
- position the unit
- carry out the connections
- check the unit operation.
175
SSR
AVM
13.4. FLOOR INSTALLATION
