AERMEC RePuro 650 - Connecting the Air Duct

48
IREPPY - 1404 - 4238051_01
RePuro450 - RePuro550 - RePuro650 :
- To identify the location of the ducts refer
to the drawing.
- Connect the ducting to the connectors, fix
the ducting with ties.

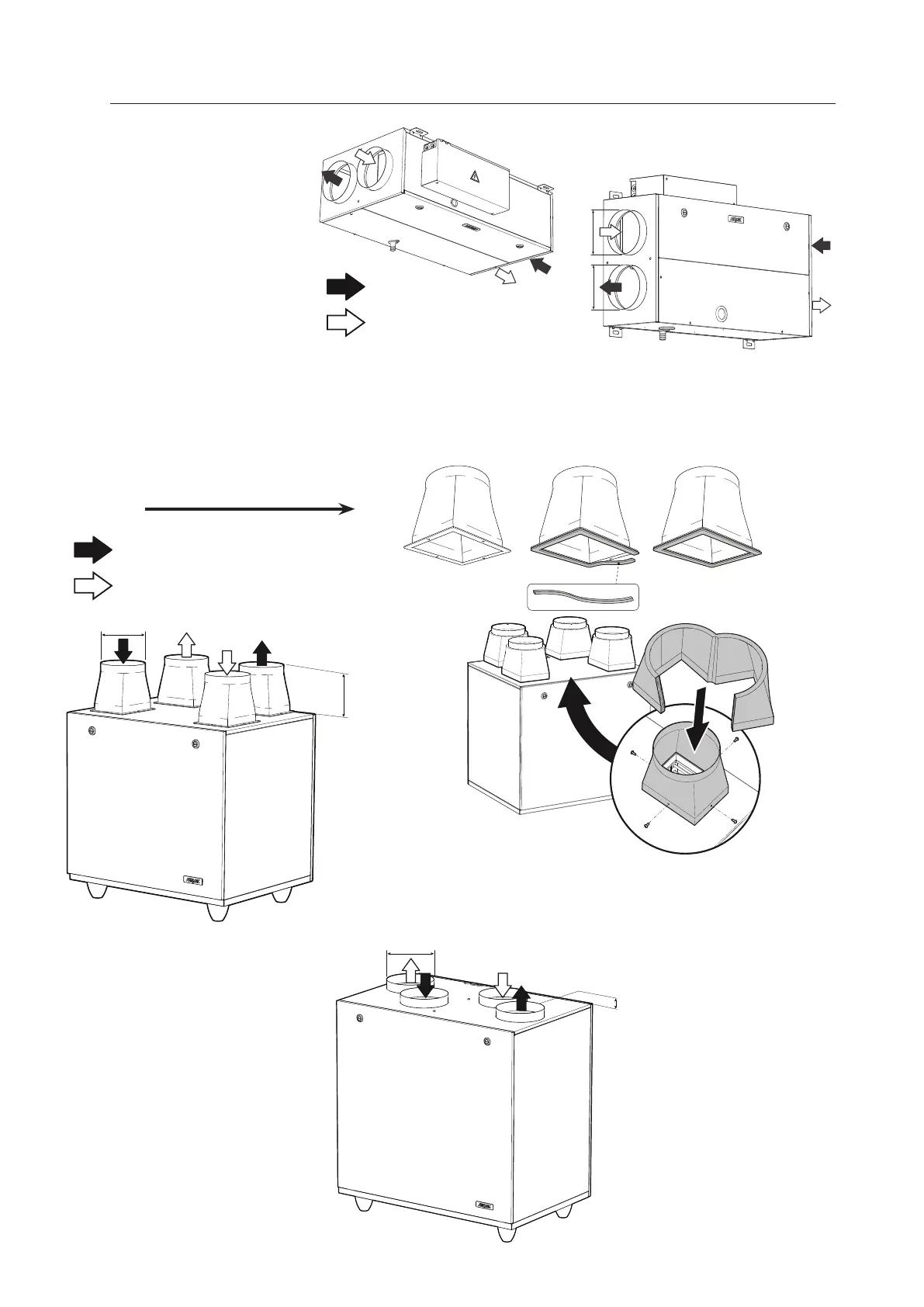

13.6. CONNECTING THE AIR DUCT TO THE UNIT
RePuro250 - RePuro350 :
- Before connecting the flanges to the up-
per panel apply the adhesive seal supplied
loose.
Proceed as described in the drawing.
- Mount the 4 connectors to the unit flange
and fix with the screws supplied loose.
- Apply the insulating shells to the 4 con-
nections.
- To identify the position of the ducts refer
to the drawings.
- Connect the ducting to the connectors, fix
the ducting with ties.
RePuro100 - RePuro170 :
- To identify the location of the ducts refer
to the drawing.
- Connect the ducting to the connectors, fix
the ducting with ties.

Supply air
Ø149
Ø149
Ø149
160

Supply air
Solo per RePuro250 - RePuro350
33
Ø180
