50
IREPPY - 1404 - 4238051_01

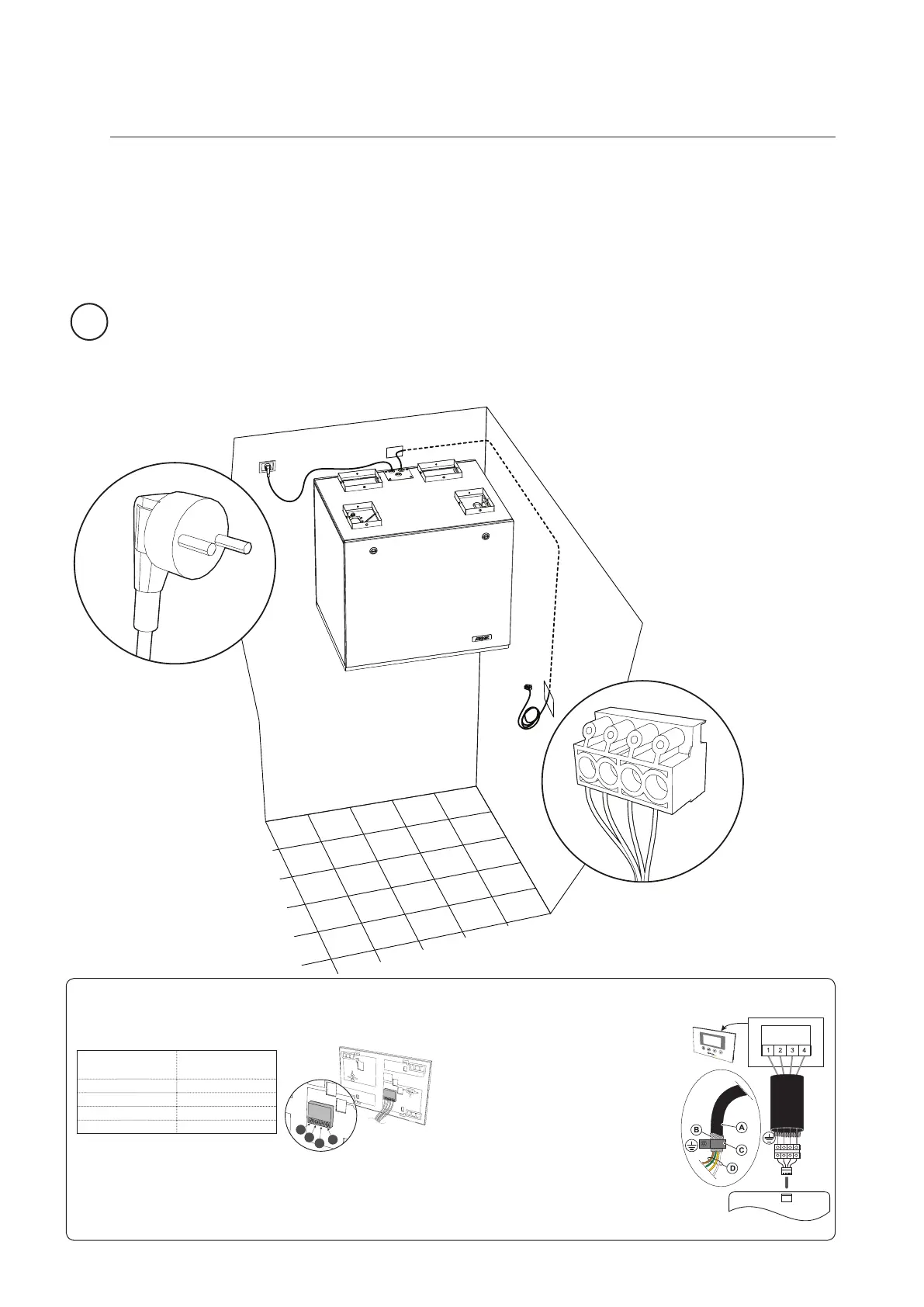

The power cable provided with
the unit is fitted with a Schuko
plug
The wired connecting cable for the wired control
panel is terminated with a 4 pole terminal block
22AWG type
Connecting cable
length = 6 m
Power cable length = 2 m
1
Once the unit is positioned pass the four core cable through
the provided aperture up to the wall box (the relationship be-
tween the wall mounted panel and the recessed wall box is
shown in the following paragraph) on top of which the control
panel will be mounted.
WARNING: If this operation requires the removal of the ter-
minal block on the cable from the unit pay particular atten-
tion to the connection sequence of the cables and terminals
which must not be changed.
CONNECTION SEQUENCE BETWEEN CABLE AND TERMINAL
Follow RIGOROUSLY :
Colour
Terminal
VMF-E4
Brown 1
Green 2
Yellow 3
White 4
Legend:
A = 4 core screened 22AWG type cable for connecon
B = Screen folded over for connecon to earth
C = Plasc terminal with conductor xed to the metal structure of the RePuro
D = Cores to connect to the interface terminal of the thermostat board
• Cable for EIB Bus, 4 core 22AWG screened
14. WIRED PANEL
14.1. INSTALLATION OF THE WIRED PANEL
The AERMEC RePuro units are controlled by the user through a wired wall VMF system panel of an especially low profile design 12 mm.
The wired panel can be wall mounted over a recessed electrical wall box. (E.g.: module 503).
The standard cable length is 6 m; if a longer cable is required (MAXIMUM 30 M) then this must have the same characteristics as the cable supplied as
standard (screened four core cable) of the 22AWG type.
The functions necessary to install the control panel of the RePuro unit are:
