51
IREPPY - 1404 - 4238051_01
Wall
mounted
Wall
mounted
82,5mm
26mm
>10mm
Ø40mm
Type
503E
Type
503E
Type
502E
Type
502E
Type
M20
Type
M20

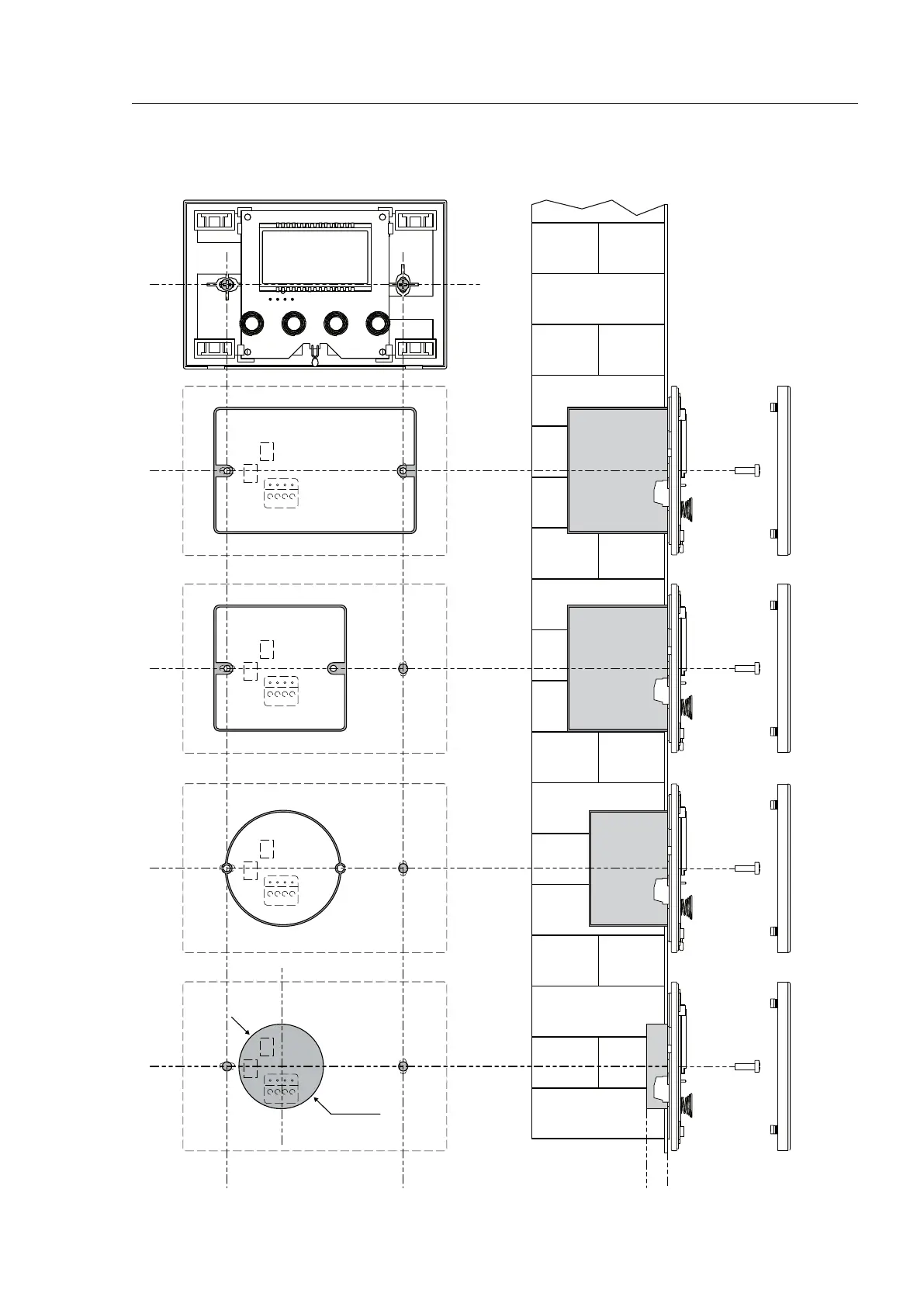

14.2. COMPATIBILITY BETWEEN THE WIRED CONTROL PANEL AND THE ELECTRICAL WALL BOXES
The wired control panel can be mounted to various types of electrical wall boxes.
Several examples are shown below:
