IVEDLJ 1808 - 4880910_03
PURPOSE OF THE VED FANCOILS
The fan coil is a room air treatment terminal unit for both winter and
summer operation. The VED fancoils are designed to fit any ducted
type system.
In particular, the possibility to be integrated into the VMF system
allows the control of a single fancoil with accessories and the
management of the VED introduced in complex fancoil networks and
their accessories.
AVAILABLE SIZES:
8 sizes for 2-pipe systems
430 - 530 - 630 - 730 (3 row coil)
440 - 504 - 640 - 740 (4 row coil)
8 sizes for 4-pipe systems
432 - 532 - 632 - 732 (3 row + 2 Row coil)
441 - 541 - 641 - 732 (4 row + 1 Row coil)
DESCRIPTION OF THE UNIT
• Fancoil for both vertical wall installation and horizontal false ceiling
installation
• Main coil with 3 and 4 rows
• Versions for 4-pipe systems also with heating-only coil of 1 or 2 rows
• Low pressure drop coils
• Couplings reversible onsite
• Wide range of accessories to connect the fan coil to each type of air
ducting
• Requires external control panel (accessory)
• Designed to t in the VMF system
• Wide range of controls and accessories
• High possibility of having dierent useful static pressures
• 5-speed fan motor, 3 preferred speeds of which can be selected.
• Centrifugal fans with fans designed for low noise emission
• Filter ltration class G3
• Air intake lter, easily removable for periodic cleaning
• Accessories for 3-way valve with
• 4 connections
• Accessories 2-way valve for the systems to variable water ow rate
• Internal insulating, class 1
• Full compliance with the accident prevention standards
• Ease of installation and maintenance
• Discharge ange incorporated in the unit
MAIN FEATURES OF THE VED FANCOILS

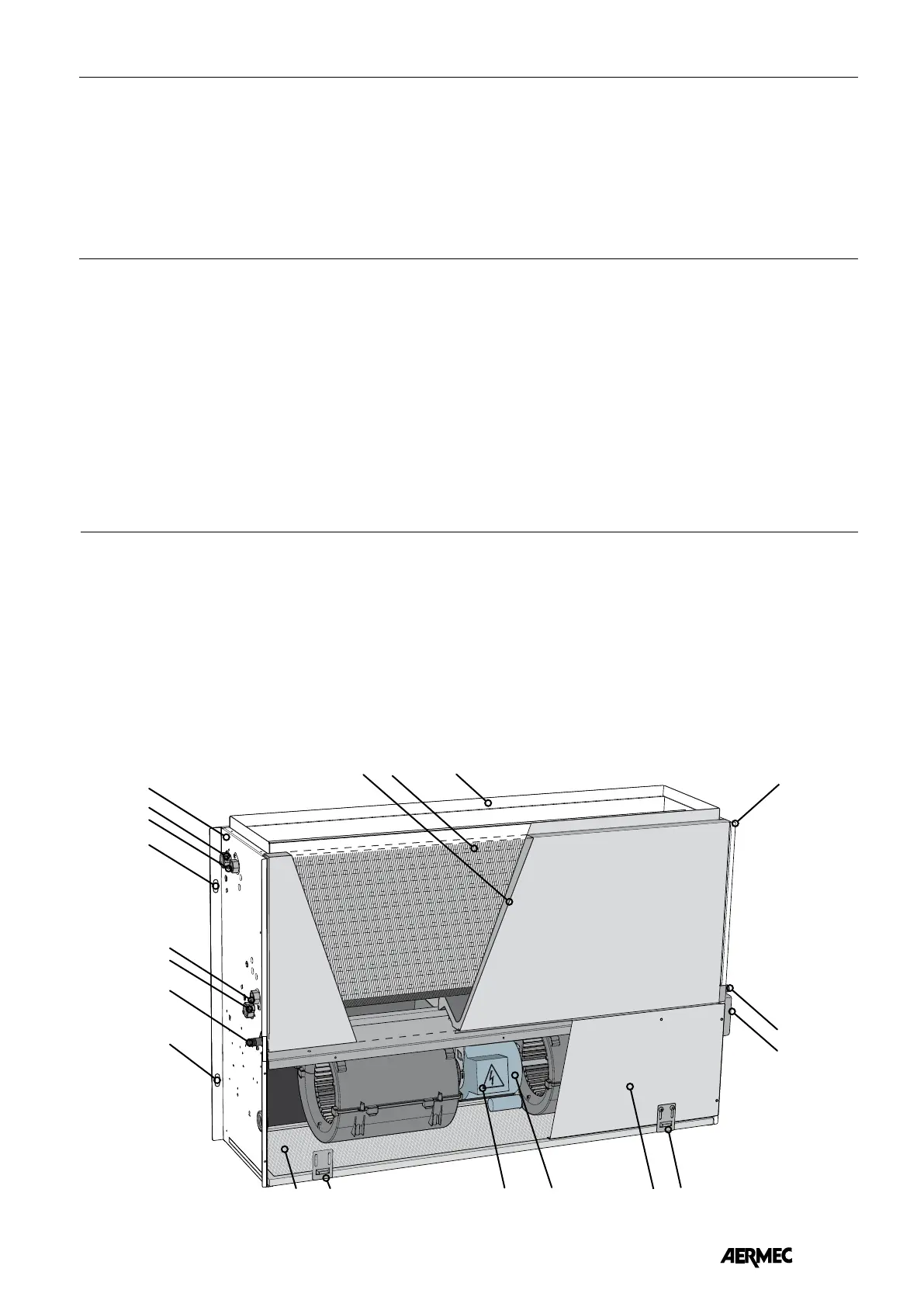

MAIN COMPONENTS
1. Right side (load-bearing structure)
2. Air delivery flanges
3. Heat exchange coil
4. Condensate collection tray / Front panel (upper)
5. Left side (load-bearing structure)
6. Vents / discharges on the coil
7. Hydraulic connections
8. Condensate drain
9. Fixing slots
10. Air filter (suction)
11. Filter clip
12. Centrifugal fan
13. Electric motor electrical box
14. Electric motor
15. Electrical wiring
2
3
1
4
6
8
10
12
11
13 14
15
8
7
7
6
9
9
11
5
