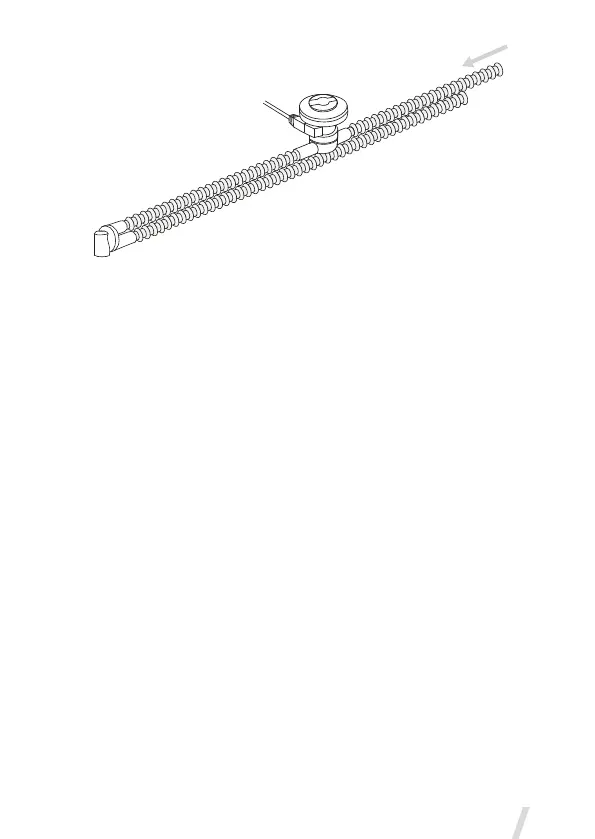

Figure 8. Alternative pediatric breathing circuit using 12 mm Male/12 mm
Female T-piece
Alternatively connect the nebulizer with the pediatric T-piece and the
adapters approximately 30 cm (12 in.) back from the patient Y (Figure
7). Alternatively connect the nebulizer with the 22F/10F/10M T-piece 30
cm (12 in.) back from the patient Y (Figure 8).
2. Always perform a leak test of the breathing circuit after inserting or
removing the nebulizer. Follow ventilator manufacturer instructions for
performing a leak test.
3. Use the universal mounting bracket to attach the controller to an IV
pole or bed rail in either a vertical or horizontal orientation (Figure 9). Do
not over-tighten knob.
Where a standard equipment mount is available, use the equipment
mount adapter to support the controller (Figure 9).
