Installation for use Off-Ventilator
Use with a Face Mask
Mask kits, which include a vented elbow and mask elbow, are available
separately (visit www.aerogen.com for full parts list). Contact your sales
representative for ordering information.
1. When using a mask, connect the vented elbow, mask elbow and mask
to the nebulizer by firmly pushing the parts together.
2. Rotate the vented elbow to suit the position of the patient (Figure 11).

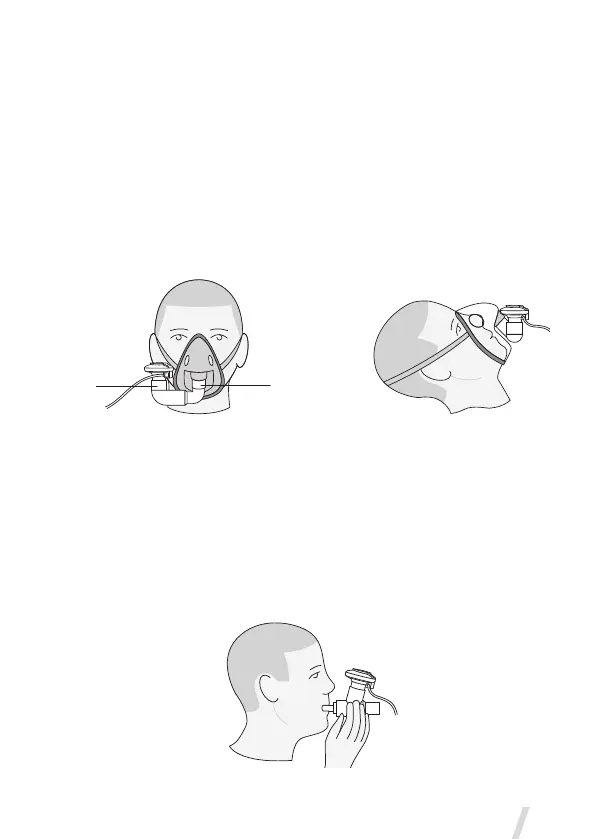

Figure 11. Connecting to a mask
Warning: To ensure correct nebulization, maintain the nebulizer in a
vertical orientation (Figure 11).
Use with a Mouthpiece
The Aerogen Pro works with any standard ISO 22 mm nebulizer mouthpiece
inserted into the adult T-piece.
Figure 12. Connecting to a mouthpiece
Patient Upright
Patient Reclined
Face Mask
Elbow
Vented
Elbow
Patient Upright
Patient Reclined
Face Mask
Elbow
Vented
Elbow
