Installation for use with a Ventilator
Connection to a Breathing Circuit
1. For adult breathing circuits, connect the nebulizer with adult T-piece
into the inspiratory limb of the breathing circuit before the patient Y
(Figure 6).

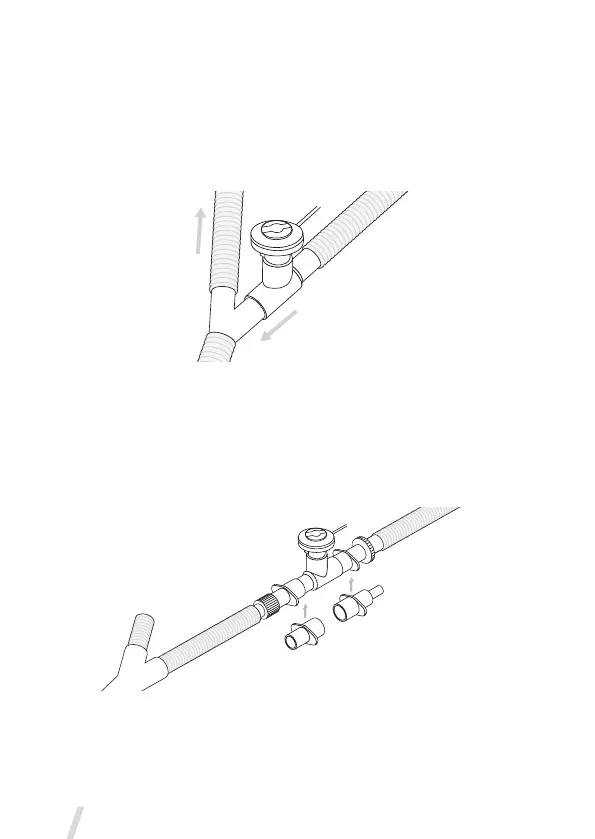

Figure 6. Connecting the Aerogen Pro to an adult breathing circuit
Note: Figure 6 shows adult configuration only
For pediatric breathing circuits, connect the nebulizer with the
pediatric T-piece into the inspiratory limb of the breathing circuit
before the patient Y (Figure 7).
Figure 7. Connecting to a 12 mm I.D. pediatric breathing circuit
