WT-9 Dynamic Club S FLIGHT MANUAL Section 4 Page 4-
7. Connect the aileron control rod with the rod in the wing centre section and secure
the nut ( Fig.4 ) with the safety pin. Than tight the fuel houses clamps.
8. Repeat the procedure with the second wing. After checking the security of the all
connection. The connection slot between wing and the wing centre section should
be sealed with sticky tape.
WARNING
After rigging of the wings check for correct operation and security of the
aileron control pins and the flap control pins as well as the connection of the
hoses from the Pitot-static tube and fuel houses.

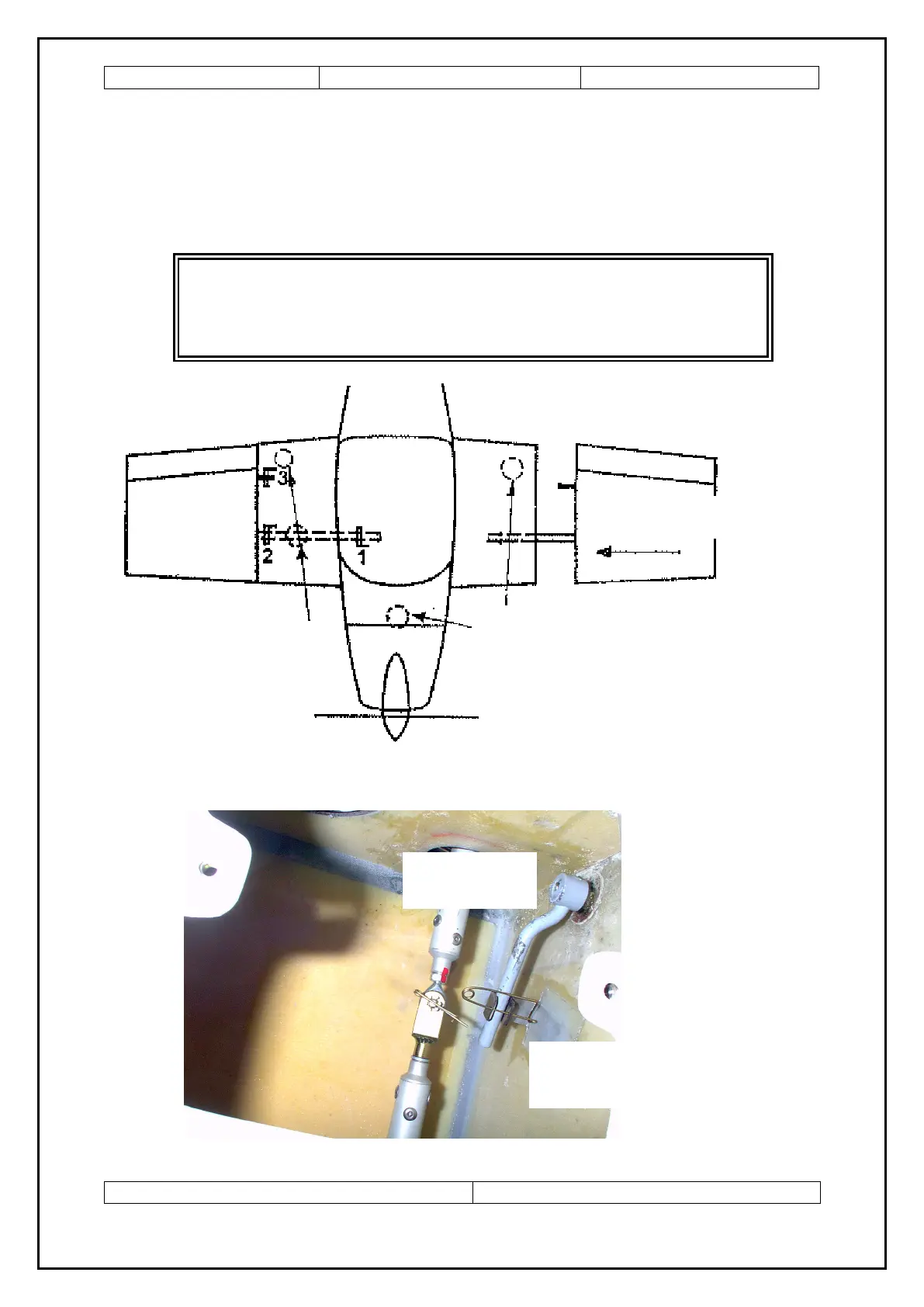

Fig. 3 Insertion of the wing spar into the wing centre section, position of the
wing pins and the support points.
Fig. 4. Connecting bolt + safety pin of aileron connection.
Date: 15.1.2007 / Rev.: 4 „Appr“
Jacking pionts for lifting the
airplane (below rear spar of
wing centre section and
below the firewall.
Insertion of the
Safety pin ( No.3 at the rear spar with the
security )
Attachment bolt
of the aileron rod
