WT-9 Dynamic Club S FLIGHT MANUAL Section 4 Page 4-
4.2.2 Derigging of the wings
Use the opposite sequence for derigging:
1. Drain every fuel tank – for 126 liters tank only.
2. Disconnect aileron rod from the rod in the wing centre section.
3. Remove the sticky tapes from the connection slot between wing and the wing
centre section. Unlock the joints of the fla shaft.
4. Pull out all wing pins. (Pull out the fixation pins for connection of the wing spar
end with the wing central panel and the auxiliary rear pin.)
5. Pull out the wing along its longitudinal axis so that there is a distance between the
wing and the wing root of approx. 100 mm ( Fig. 3 ). Disconnect the hoses from
the Pitot-static tube (disconnect the position lights wires etc, if lights installed ).
6. Carefully pull the wing away from the wing centre section and put on soft mats.

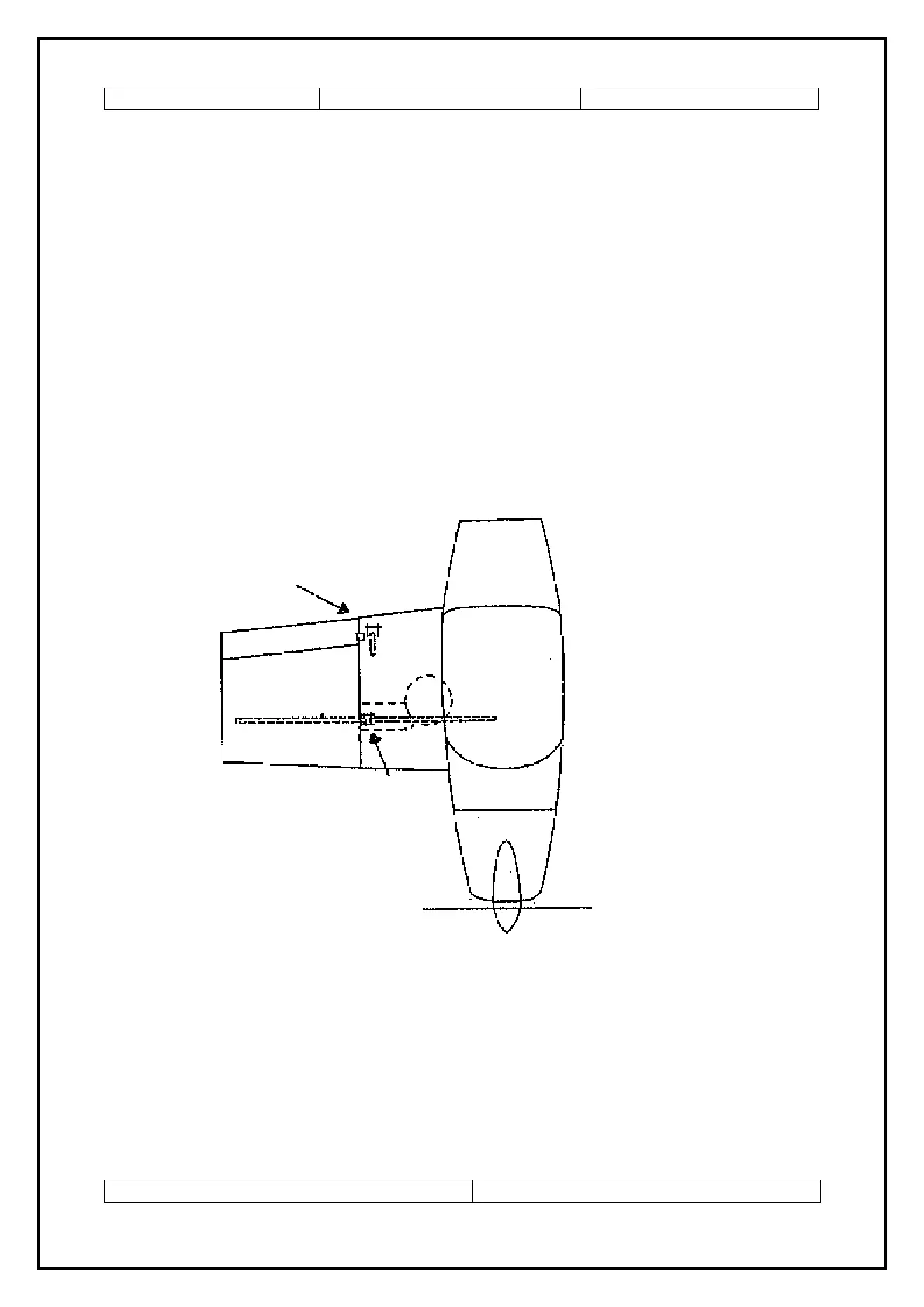

Fig. 5 Connecting position for the flap and the aileron.
Date: 15.1.2007 / Rev.: 4 „Appr“
Aileron rod
connection
Flapshaft
