AES global CellCOM PRIME - GSM Module and Keypad;Prox Module Details

P a g e | 18

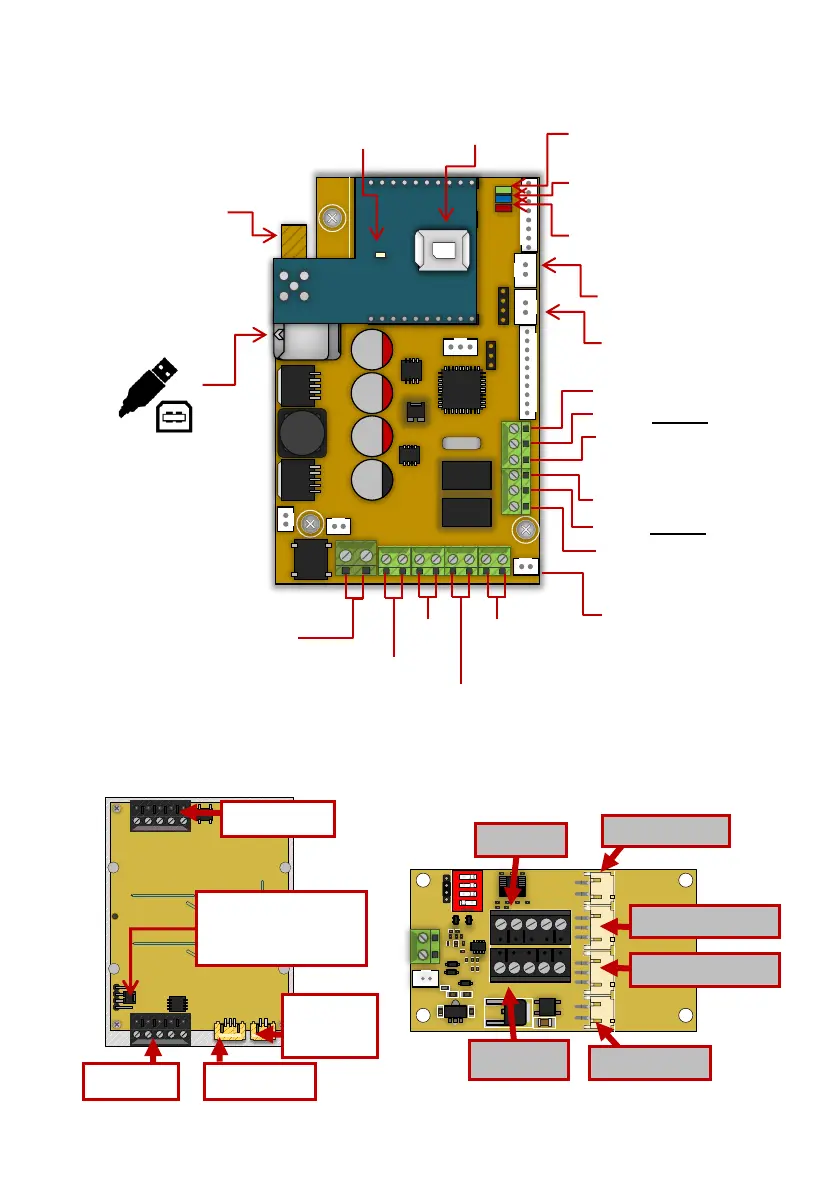

Main GSM Module (2) in Detail…
Keypad (14/15) & PROX Modules (11) in Detail
1 2 3 4
ON
DI P
SLAVE IN
SLAVE OUT
1 2 3
1 2 3
IN
+ 24V -
OUT
+ 24V -
IN
1 2 3
OUT
1 2 3
COIL
SLAVE IN
SLAVE OUT
12-24V
OUT
1
2 3
12-24V
OUT
1
2 3
RVT
RVT
RVT
RVT
RVT
RVT
RVT
RVT
101101
Relay 1
Relay 2
8.000
USB
Relay 2
DETECT
Gate Position
Limit switch
(optional)
OPEN
Exit Button
PB
To Call
Button
12V = 12v DC
Output 100mA
(backlighting)
DC 24V
Input from
supplied
PSU
Relay 1
Green LED = CPU Status
Blue LED = Signal Status
Red LED = Power
NANO SIM
holder
White LED =
Modem Status
Female SMA
Antenna
Connection
N/O
COM
N/C
N/O
COM
N/C
USB-B Port
Microphone
Speaker
Slave IN
DATA
DC
Voltage IN
Slave OUT
DC Voltage Out
Slave IN
Connectio
ns
DATA Transfer OUT
DATA Transfer IN
IN
DC Voltage IN
Slave OUT
Connection
s
12V DC OUT
Push Button
Illumination
Polarity Protected
Master only/Auxiliary
(Baud rate on older units)
Jumper Link
