AES global CellCOM PRIME - Connecting Slave Devices (6 th Generation)

P a g e | 37
Note:
Up to a total of 8 devices can be connected to the one SIM module.
All keypads will be programmed with the same codes as the main unit.
All Prox units will store the same Prox cards.
Power slave devices separately for longer distances.
Prime 6
th
Generation
1 2 3 24v
OUT
IN
OUT
IN
OUT
IN
1 2 3 24v
OUT
IN
1 2 3 24v
1 2 3 24v
Optional Slave
Keypad
Optional Slave Prox
Reader
To next device
CAT5 (30ft max)
300ft if device powered separately
To next device
Optional
Keypad
Optional Prox
reader

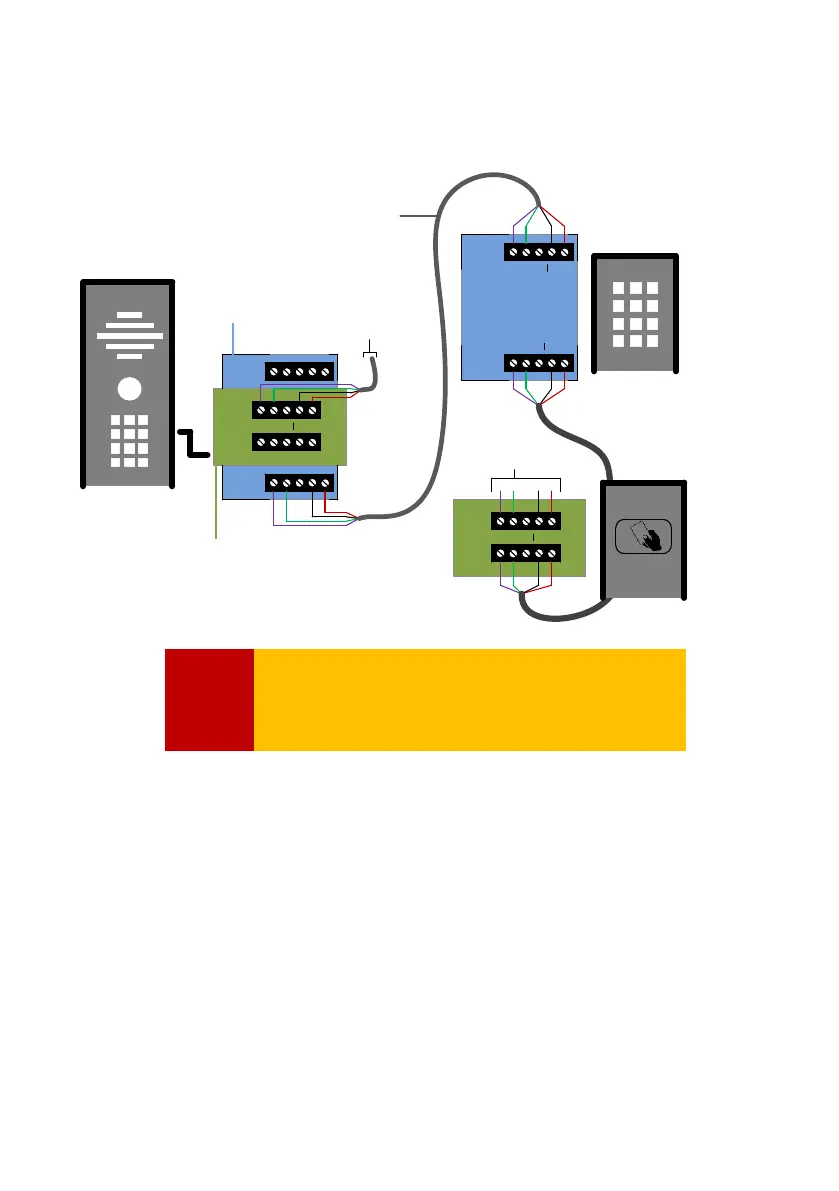

Connecting Slave Devices
(6
th
generation)
*Keypad module required*
