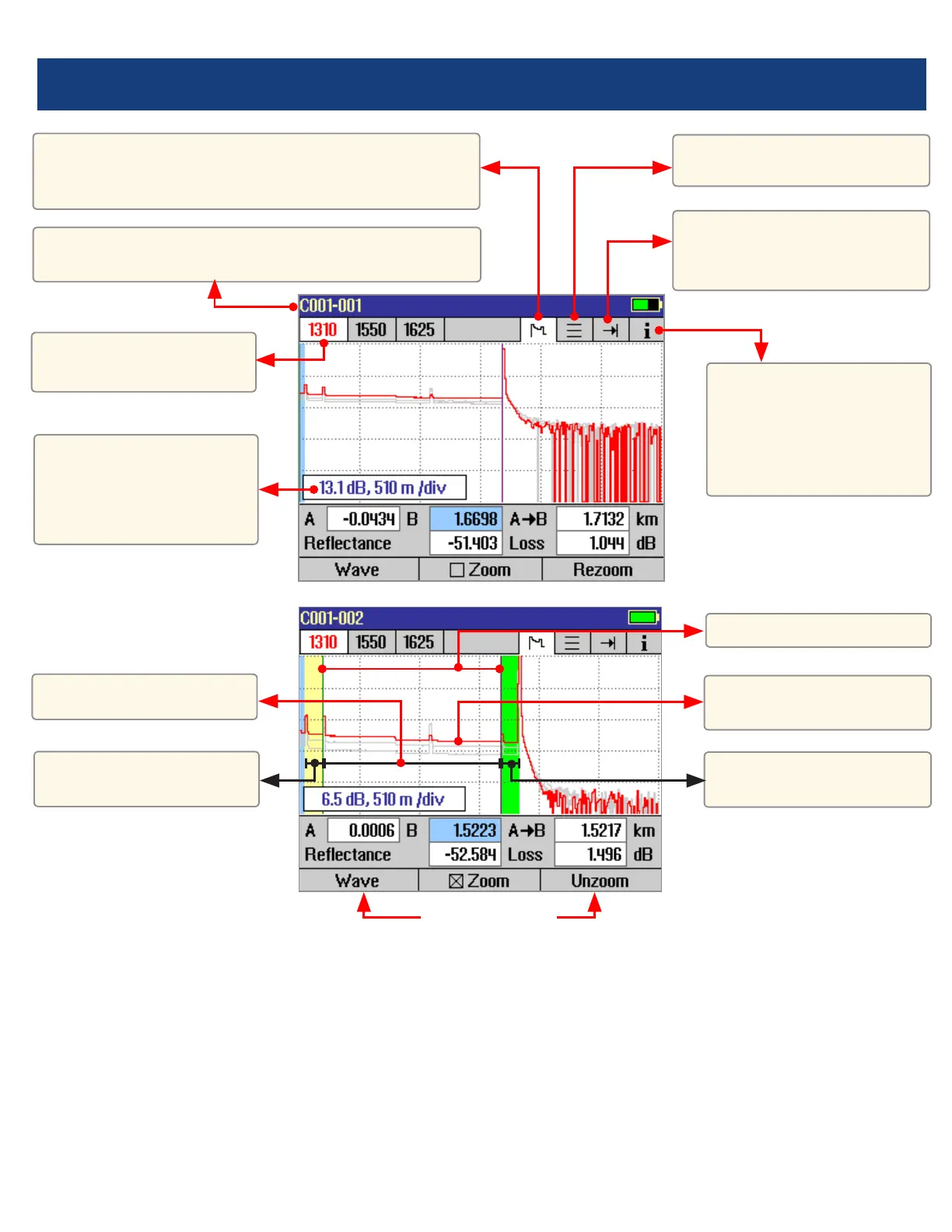

OTDR Mode: Trace Page Features
Soft key labels
(see next page for details)
Event Table displays OTDR
event measurements.
Information Page
displays OTDR setup
parameters, launch and
receive cable data, and
event thresholds.
Summary Page displays
end-to-end link
measurements.
A and B cursors.
Trace graph
(RED is current).
Receive cable
(if present).
File name (cable name + ber number), or “New
Trace” if le has not been saved.
Test Wavelengths (RED
is current).
Grid units display
dB/div on vertical axis
and distance/div on
horizontal axis.
Trace Page displays OTDR trace, A/B cursors,
Loss, Distance, and max reectance between A
and B cursors.
Launch cable
(if present).
Fiber under test.
