Tunnel Placement
A conveyor must be used with the tunnel to move the product while it is being sleeved.
1. Position the tunnel next to the conveyor, considering product size and location on
conveyor.
2. Ensure that all controls on both control panels are easily accessible.
3. Set the conveyor height.
4. If the tunnel height needs adjustment, connect the heat tunnel to AC power. Refer
to the “Connecting Power” section on page 14.
5. Press the Ascend or Descend buttons as required to raise and lower the heat
tunnel.
6. When the tunnel and conveyor have been properly positioned, unscrew the leveling
feet to keep the tunnel from moving.

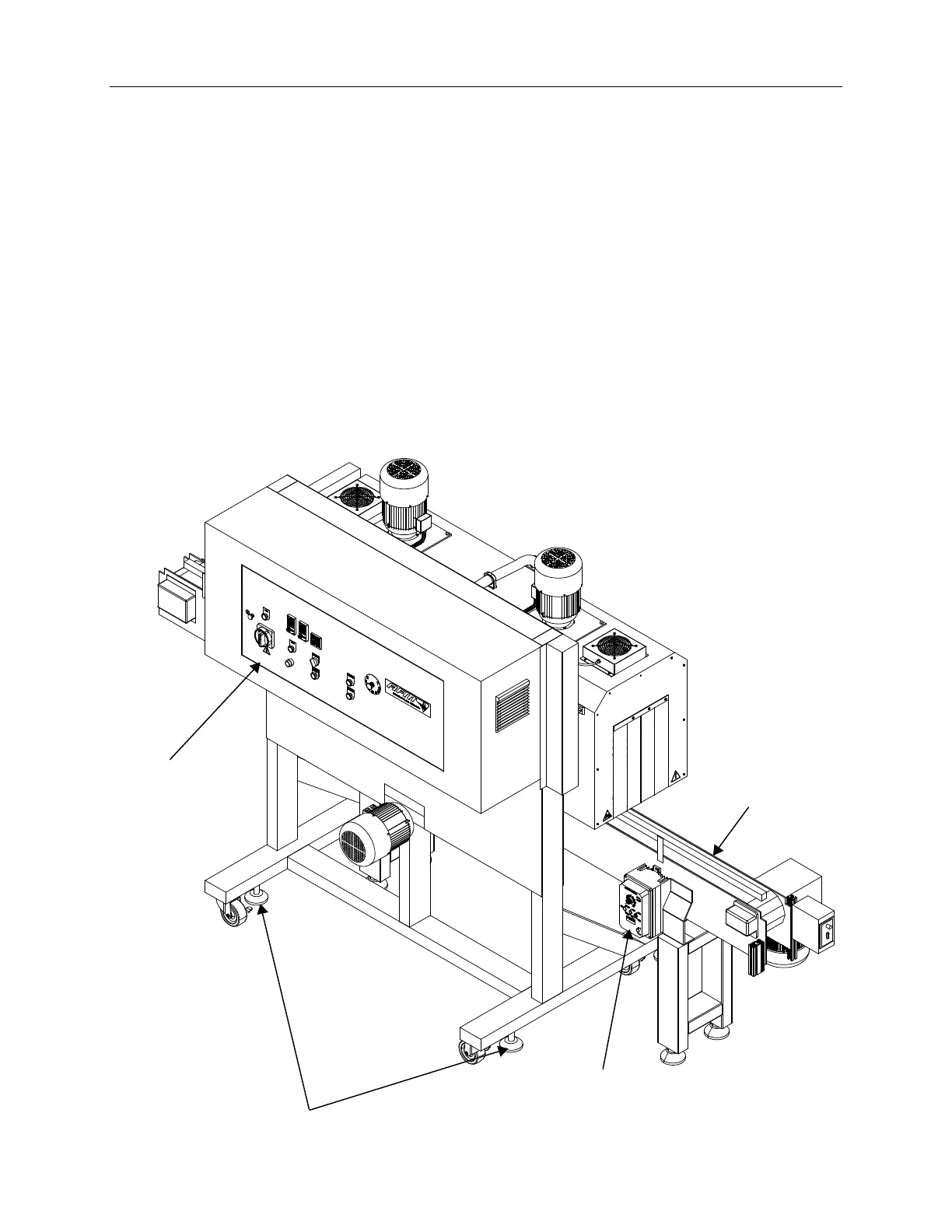

Tunnel Controls
Conveyor Controls
Tunnel
Feet
