AFM ES-200A - Airflow Adjustment

22 Maintenance
4510003 Rev B
Interior Vents
Inside the heat tunnel, rows of adjustable louvers can be moved using the provided
adjustment tool to facilitate variable airflow at different sections throughout the tunnel.
Increasing the speed creates more heat pressure in the tunnel. Use the airflow
pressure and vent adjustments to achieve the desired shrink for each product.

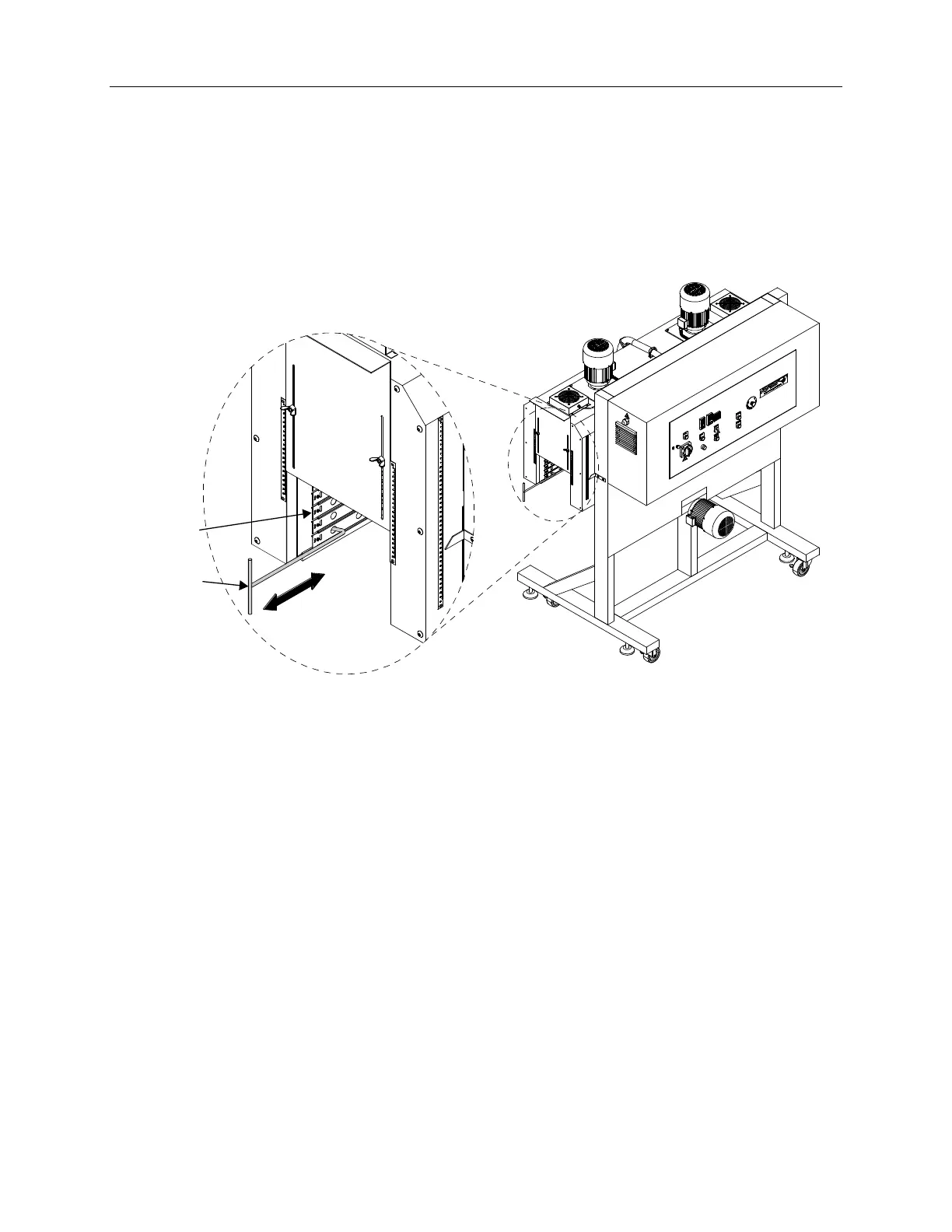

Adjustable
Louvers
Adjustment
Tool
