Installation
14

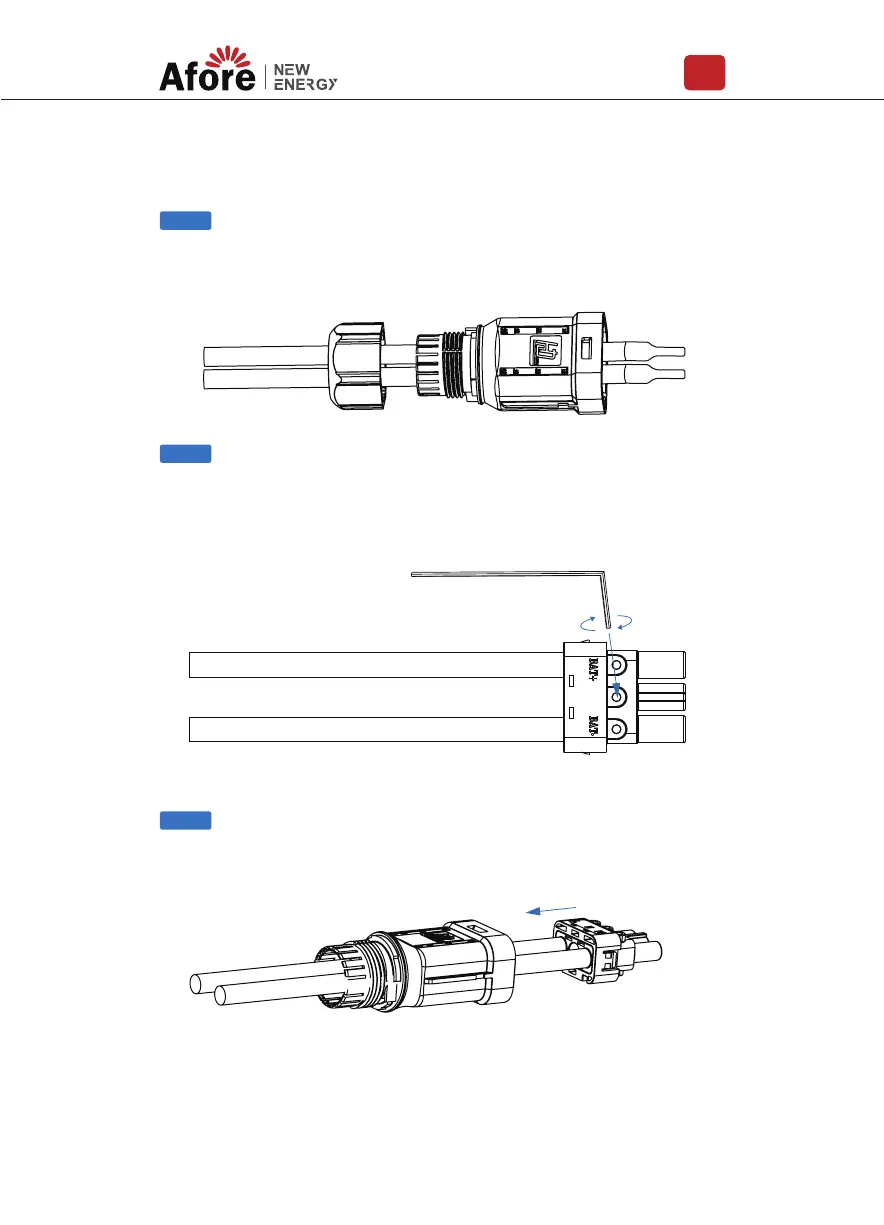

Pass the crimped battery harness through the waterproof connector and the cover.
Insert the wire harness into the terminals according to “+” and “-” polarity, make the
insulated terminals parallel with the terminals , the crimping screw torque is 2.0±0.1N.m
Step 2
Step 3
A “click” sound will be heard when the connector assembly is correct.
Step 4
