Afore AF1K-SL-0 - Battery Connection

Installation
13
AF-SL-0 AC Coupled inverters are compatible with lithium battery. For lead acid
battery or batteries with other brands, please confirm with local distributor or
Afore for technical support.
4.3.1 Baery Connecon
Note:
Set battery type and manufacturer, please refer to Chapter 5.3.
BMS( Battery Management System) communication is needed
between inverter and battery.
Note:
Battery cable suggestion Cross - section 8-10 AWG
Please make sure the battery polarities are correct.

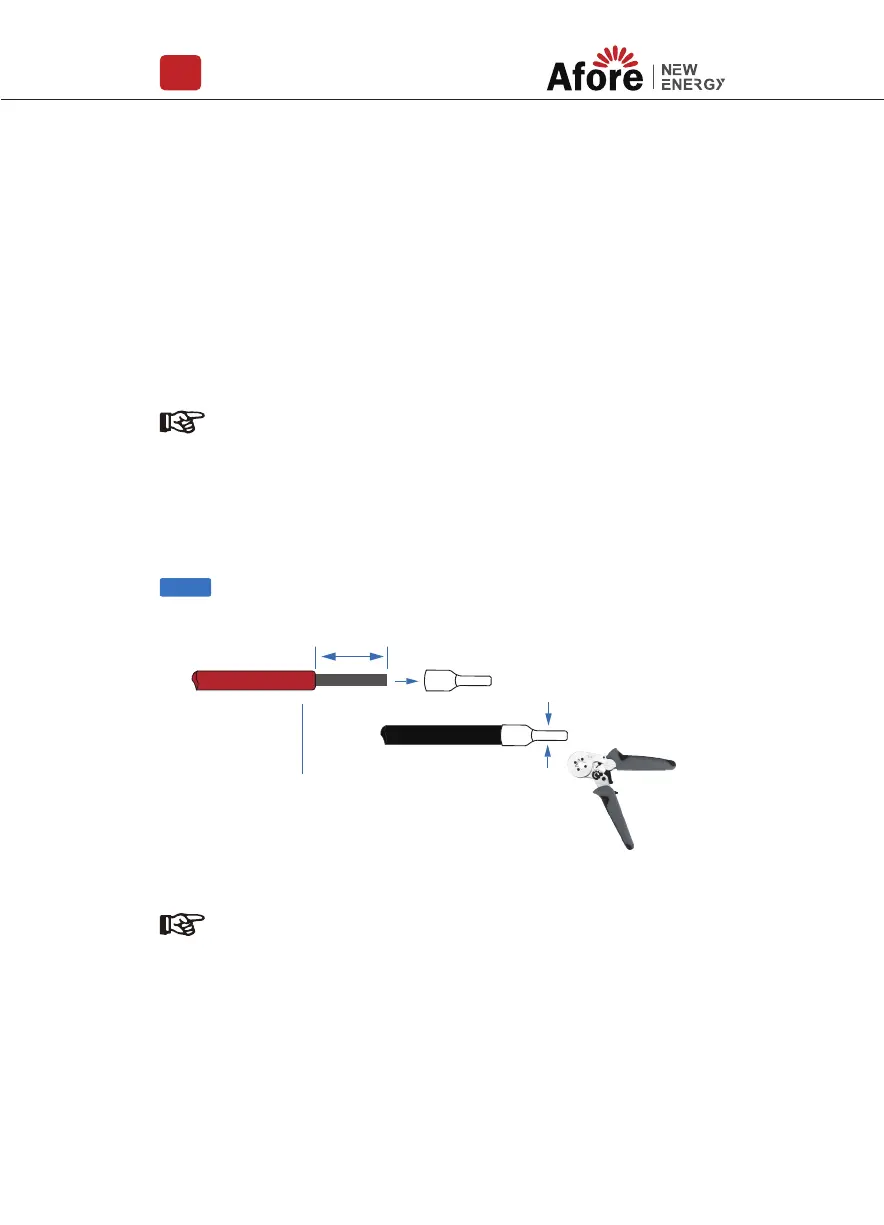

Battery cable
19±1mm
Step 1
