Afore AF1K-SL-0 User Manual

Operation
29
▲/▼Chose
Meter Paramr

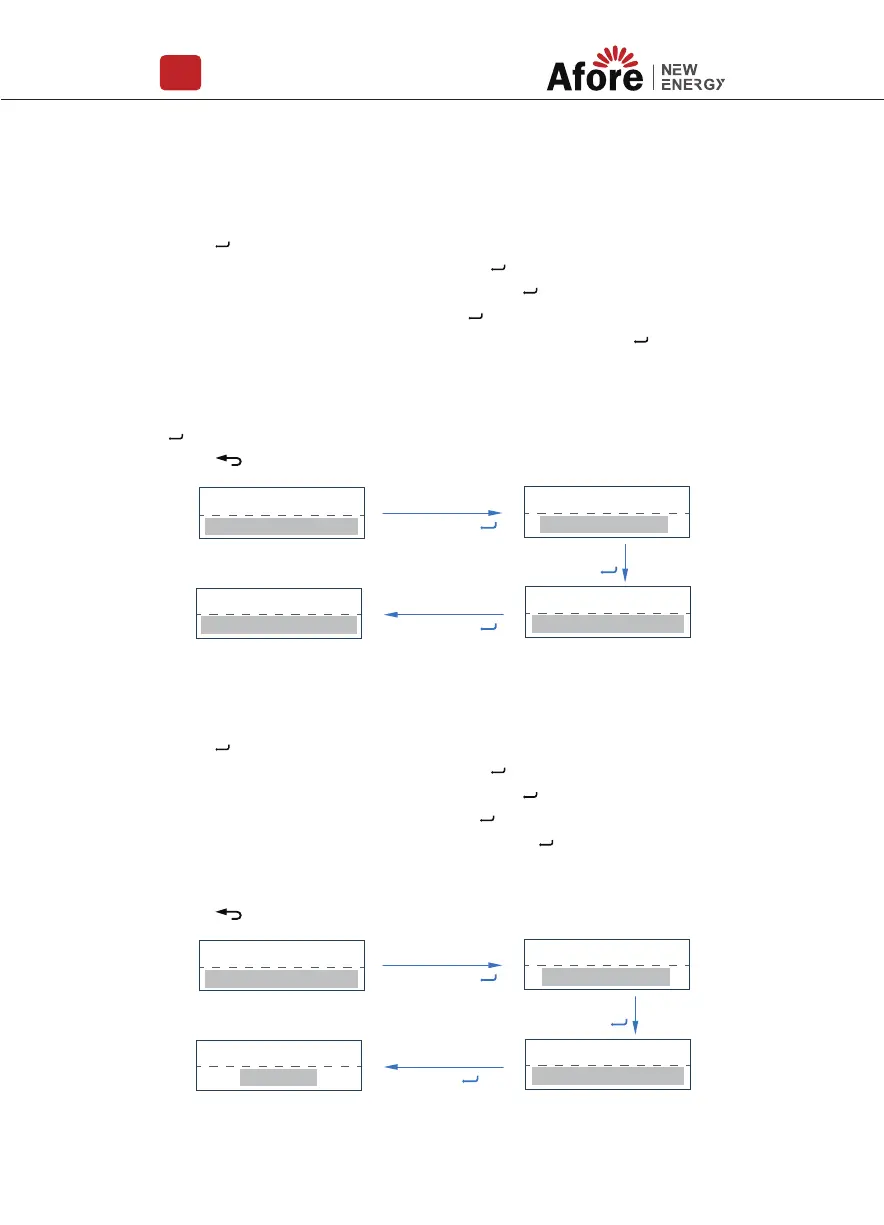

5.3.10 Meter
Step1: “ ”Entry Menu;
Step2: “▲/▼”Up/Down Chose Running Param,“ ”Confirm;
Step3: Password Confirm,▲/▼ Up/Down Chose “0”,“ ”Confirm;
Step4: “▲/▼”Up/Down Chose Meter param, “ ” Confirm;
Step5: “▲/▼”Up/Down Chose No Meter / CT/ Meter, “ ” Confrim,
Step6: if select Meter, “▲/▼” Up/Down chose Afore / Afore3 / UKOB / User2;
Step7: if select CT, “▲/▼” set CT gains,
Step8: “ ”Return.
Running Param
Meter Param
MEN
Running Param
▲/▼Chose
Running Param
Meter Param
Meter
Meter
Afore3
▲/▼Chose
Meter
▲/▼Chose
EMS Param
5.3.9 Forced Discharging
Step1: “ ”Entry Menu;
Step2: “▲/▼”Up/Down Chose Running Param,“ ”Confirm;
Step3: Password Confirm,▲/▼ Up/Down Chose “0”,“ ”Confirm;
Step4: “▲/▼”Up/Down Chose EMS Param, “ ” Confirm;
Step5: “▲/▼”Up/Down Chose Force DChg(Forced Charging seng), “ ” Confrim,
Step6: “▲/▼”Up/Down Chose Force DChg(Forced Charging Switch On/Off)/PForce
(Max power percentage)/MaxSoc(Max SOC)/TimOn1(Start me)/TimOff1 (Stop me)
/TimeOn2(Start me)/TimOff2(Stop me)/TimOn3(Start me)/TimOff3(Stop Time),
“ ” Confirm, (Supporng max 3 stages charging&discharging me);
Step7: “ ”Return.
EMS Param
Force DChg
Running Param
EMS Param
MEN
Running Param
▲/▼Chose
Running Param
Force Chg Chg
Force DChg OFF/ON
▲/▼Chose
Force DChg
