Afore AF1K-SL-0 - Operation; Control Panel

5. Operation

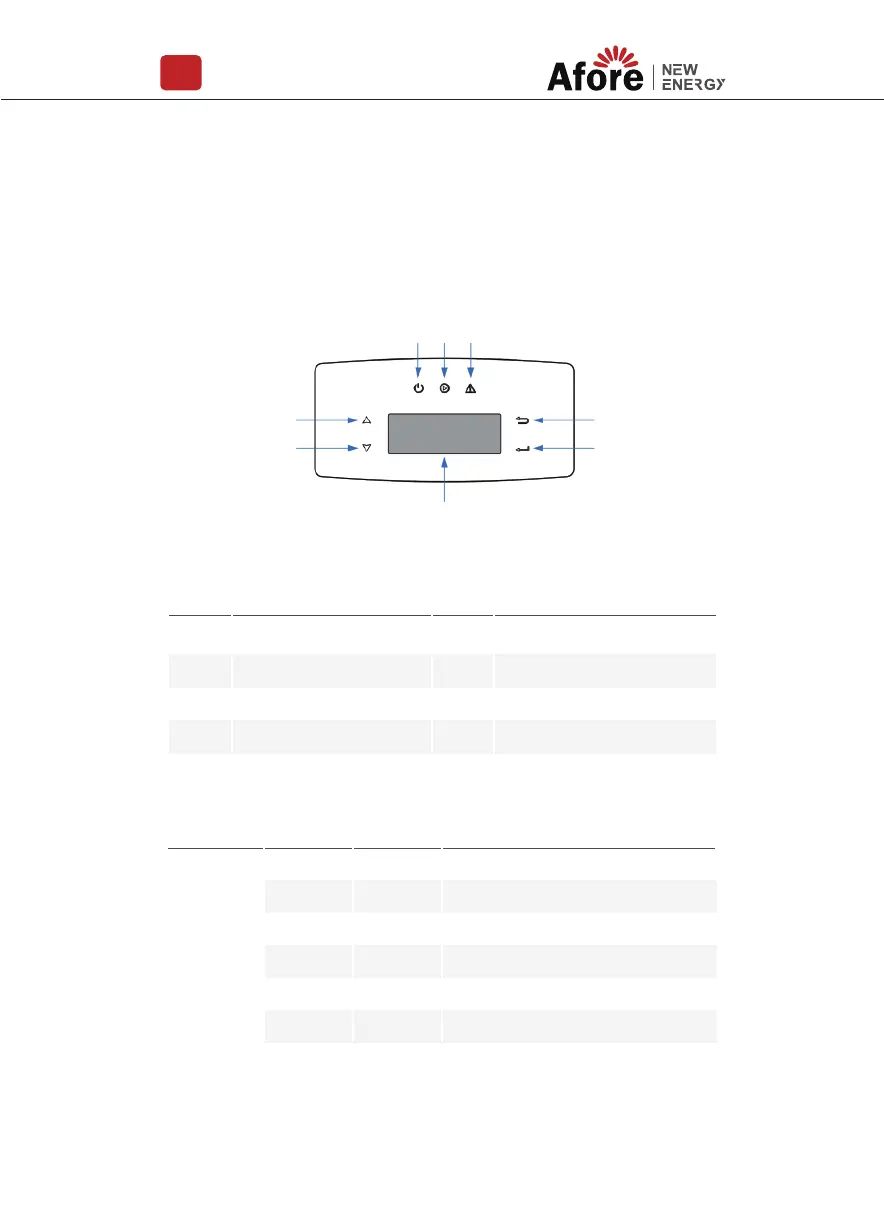

5.1 Control Panel
○
2
○
3
○
1
○
○
4
5
○ ○ ○
6 7 8
ItemsNNo. ItemsNNo.
1
2
3
4
LCD Display
ESC Touch Button
UP Touch Button
DOWN Touch Button
5
6
8
7
FAULT LED Indicator
POWER LED Indicator
ENT Touch Button
GRID LED Indicator
Sign Color Explanation
POWER
GreenON
OFF
ON
OFF
ON
OFF
Green
Red
FAULT
The inverter is stand-by
The inverter is power off
The inverter is feeding power
The inverter is not feeding power
Fault occurred
No fault
GRID
Power
Operation
