AG Mini Operation Manual
AR / 25.07.23 / Version 1 10

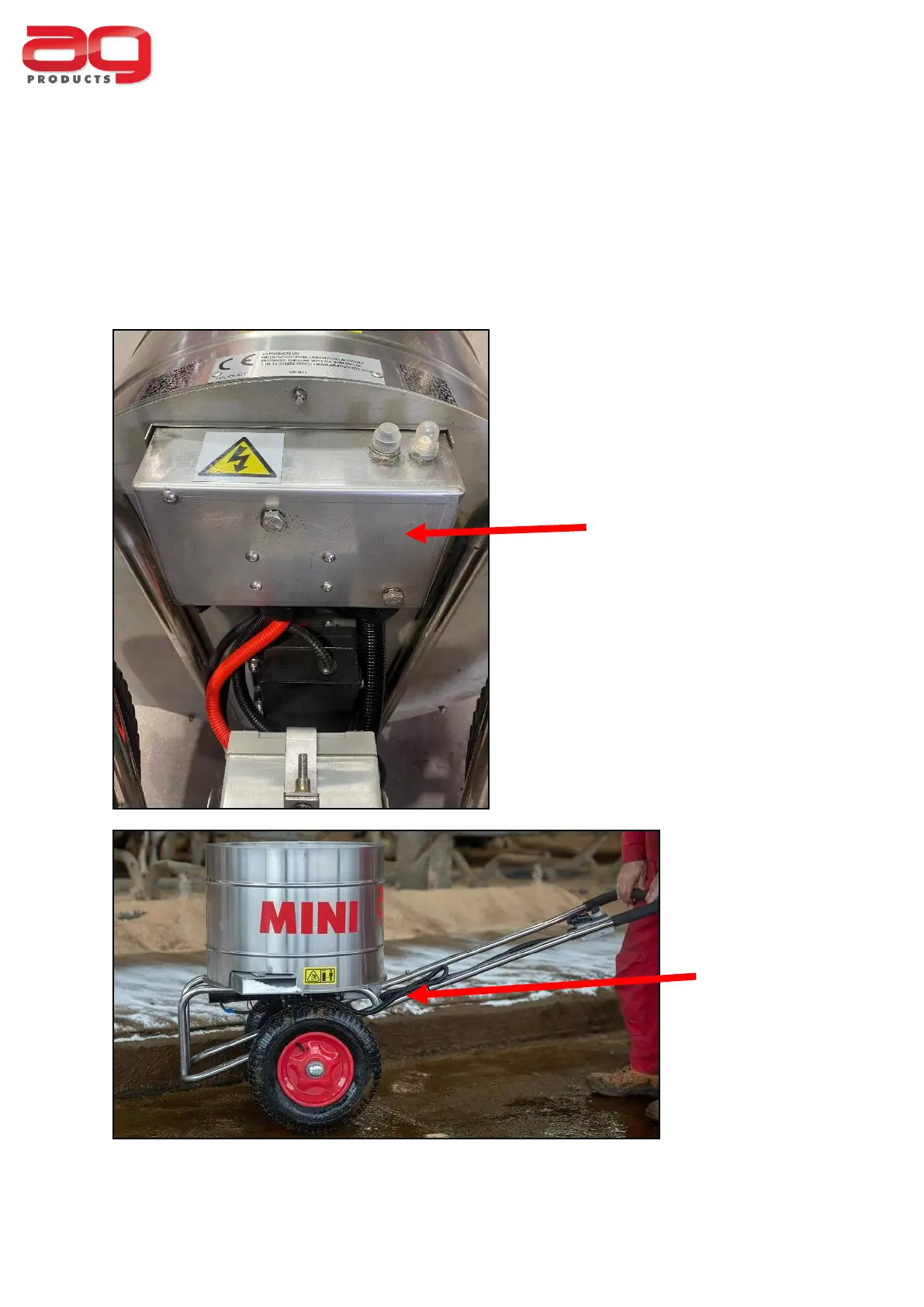

2.3 THE ELECTRICAL ENCLOSURE
The electrical enclosure for the AG Mini is bolted to the underside of the chassis, located
above the battery. The enclosure protects wiring components inside of the enclosure from
water, muck, and bedding. Here you will find components for flickers, agitator and charging
circuits. Protruding from the enclosure are 2x push button reset trips for the agitator and
charging circuit.
