2.1.4 HOPPER SLIDE
Ensure machine is switched off before adjusting.

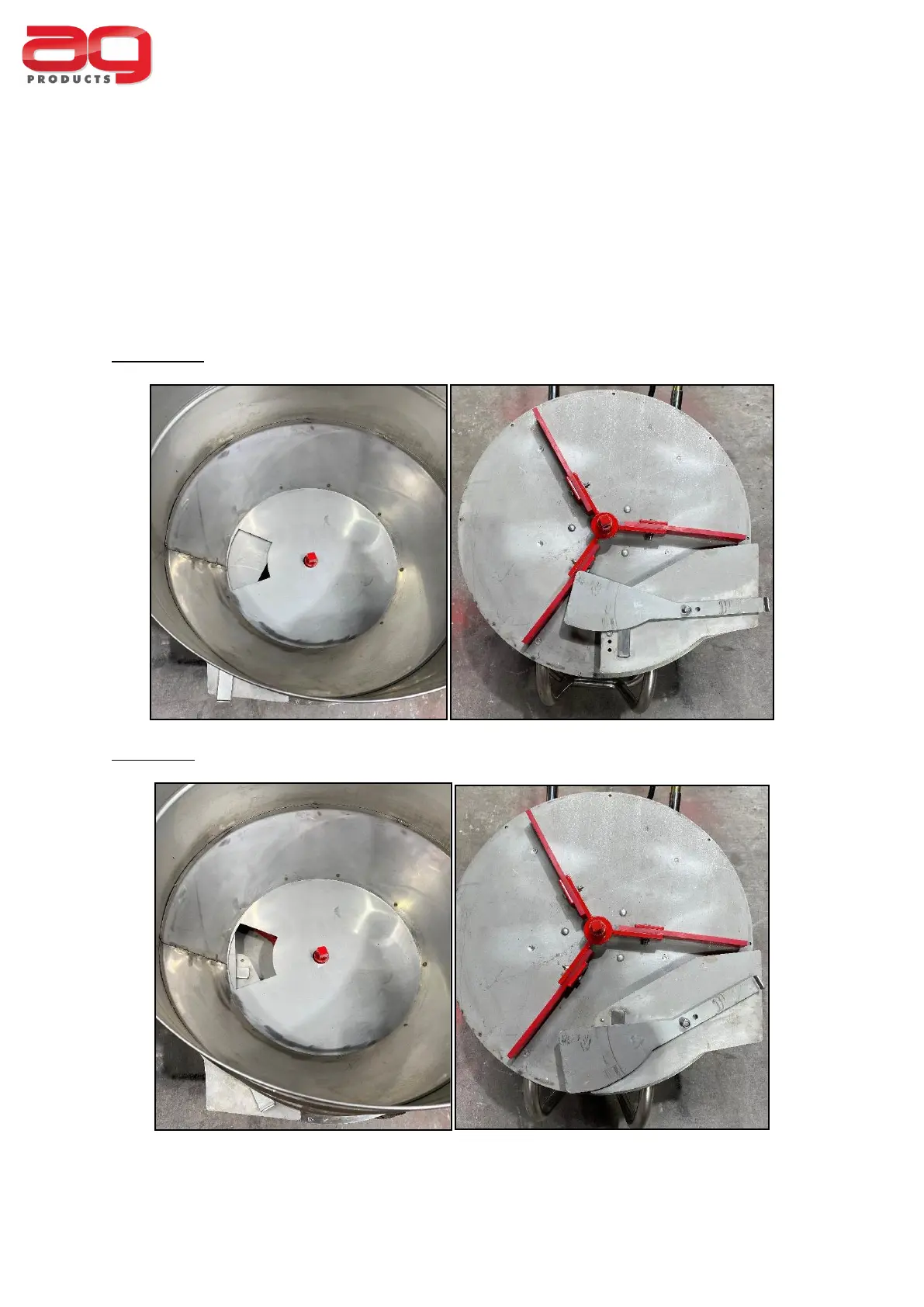

The volume of material dispensed is controlled by the position of the hopper slide. The
hopper slide is attached to the flicker unit as shown in the images below. The slide is pivoted
about the point at which it is attached. There are two possible pivot points, the two pre-set
holes in the slide allow for added slide adjustment.
Fully closed.
Fully open.
