5
DESN 515698 B
REAR LEFT
FRONT
LEFT
REAR RIGHT
FRONT
RIGHT
GRILL
LOWER
OVEN
GAS HOB BURNERS
SIMMERING OVEN
LOWER
OVEN
NEON
TOP
OVEN
NEON
The GAS HOTPLATE CONTROL KNOBS have a push to turn’
action and can only be rotated anti-clockwise from the OFF
position:
Large Flame Symbol - High Setting
Small Flame Symbol - Low Setting
The GRILL ELEMENT KNOB can be rotated in any direction:
Clockwise both elements on.
Anti-clockwise front elements only.
The OVEN KNOBS can only be rotated clockwise from
the OFF position.
The OVEN NEONS illuminate when ovens are switched
on. When the temperature required is reached the neon
will extinguish.

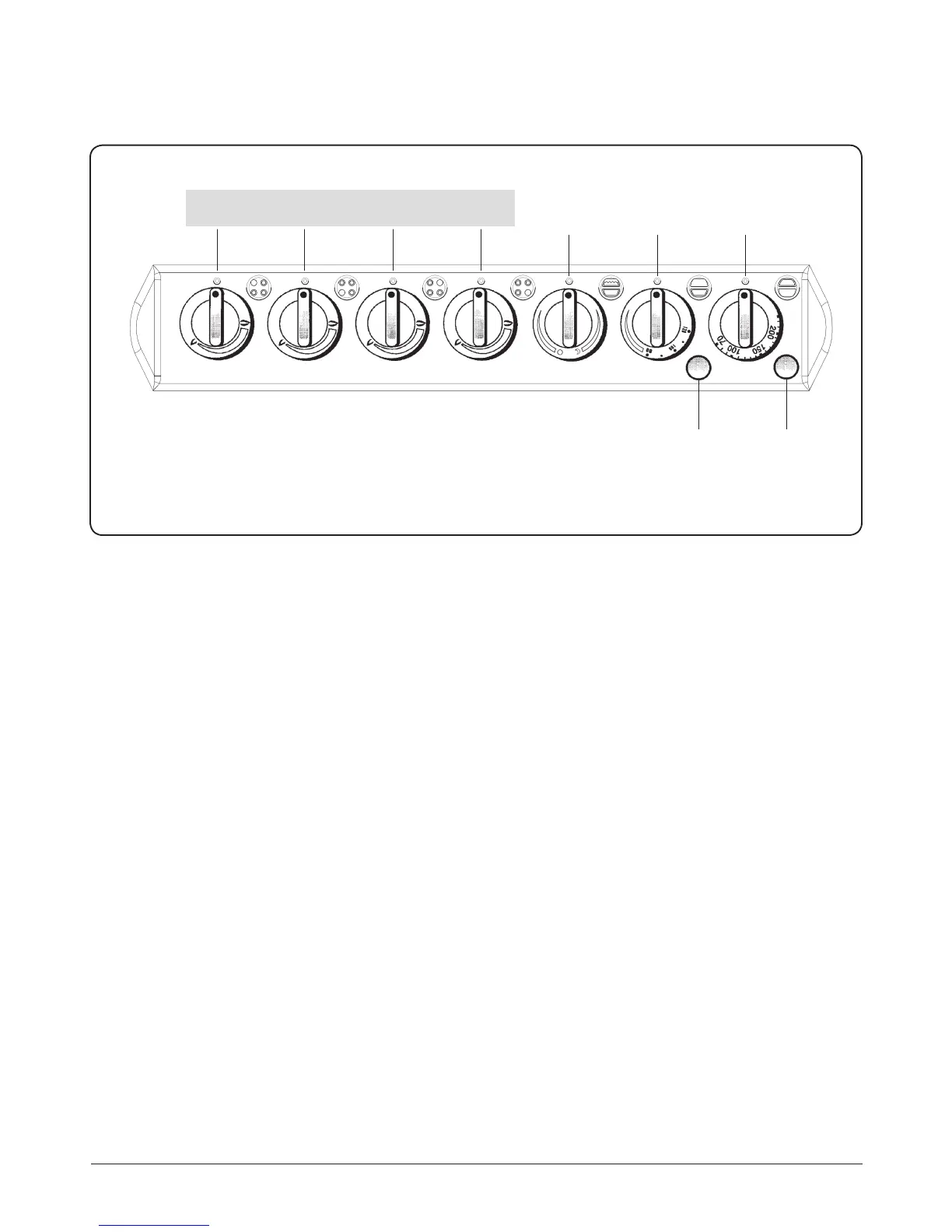

Control panel
Fig. 3.2
