Reassemble
1. If you have lifted the maintop, carefully lower it onto
the range. The burners are protected against the burner
ames going out by Flame Supervision Devices (FSD’s).

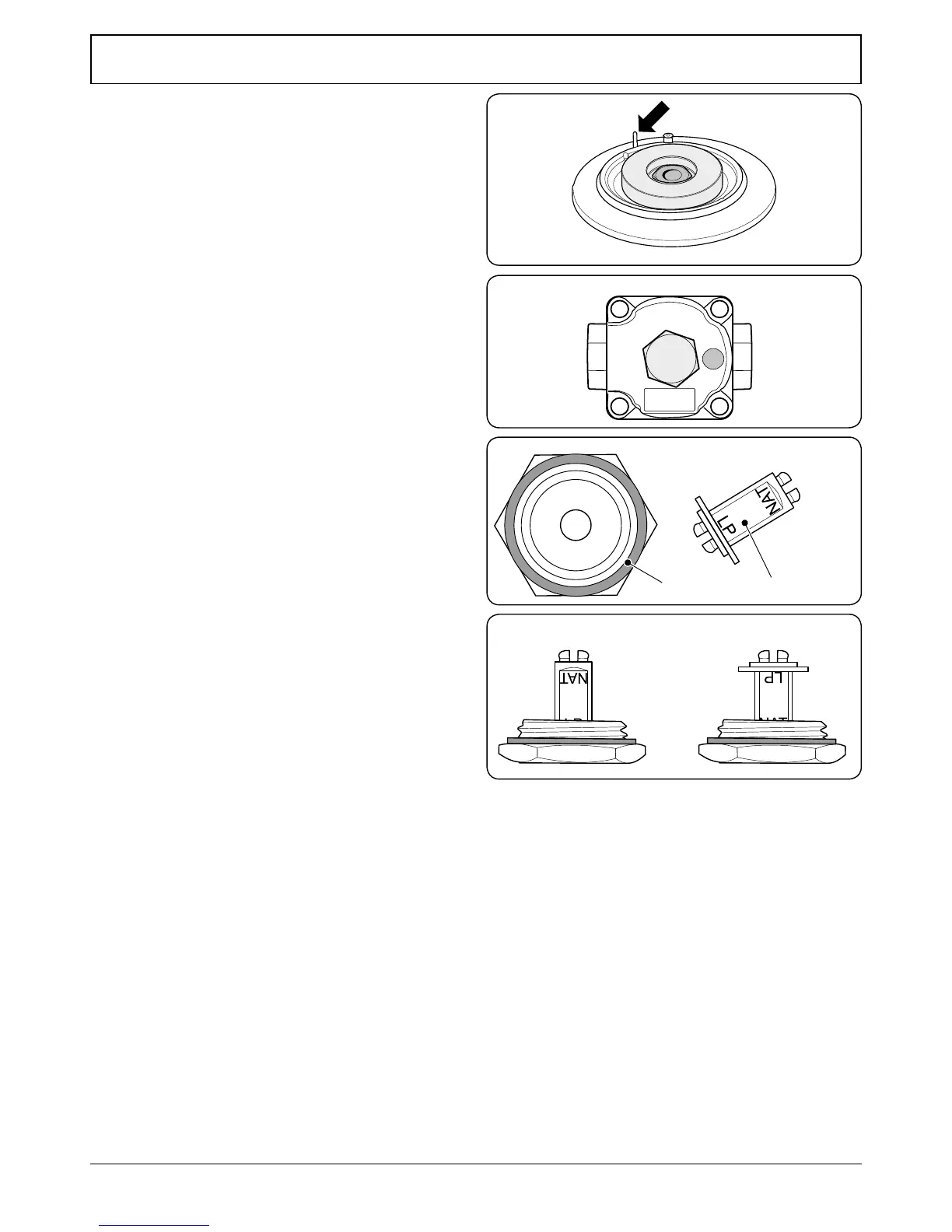

2. Take care when lowering the maintop to locate the FSD
sensor probes (Fig. 13.8) in their holes in the cook top
and the burner bases.
3. Ret the control panel and the knobs.
Gas Regulator Adjustment
To access the gas regulator remove the storage drawer (see
Section 11, page 36). Once the drawer has been removed
the regulator is now visible (Fig. 13.9).
NOTE: To avoid exterior damage to the storage drawer. Place
a soft cushioned mat on the oor.
1. Unscrew the hexagonal nut in the front of the regulator.
The regulator nut has a plastic snap-in converter device
on the underside (Fig. 13.10). To convert the regulator
snap the device out of the nut and replace the other
way up.
2. The snap-in converter device is marked to show which
gas it is set for (Fig. 13.11). Make sure the device is
secure in the base of the nut and replace the nut to the
regulator.
ArtNo.102-0007 - Maxitrol converter device positions
