31

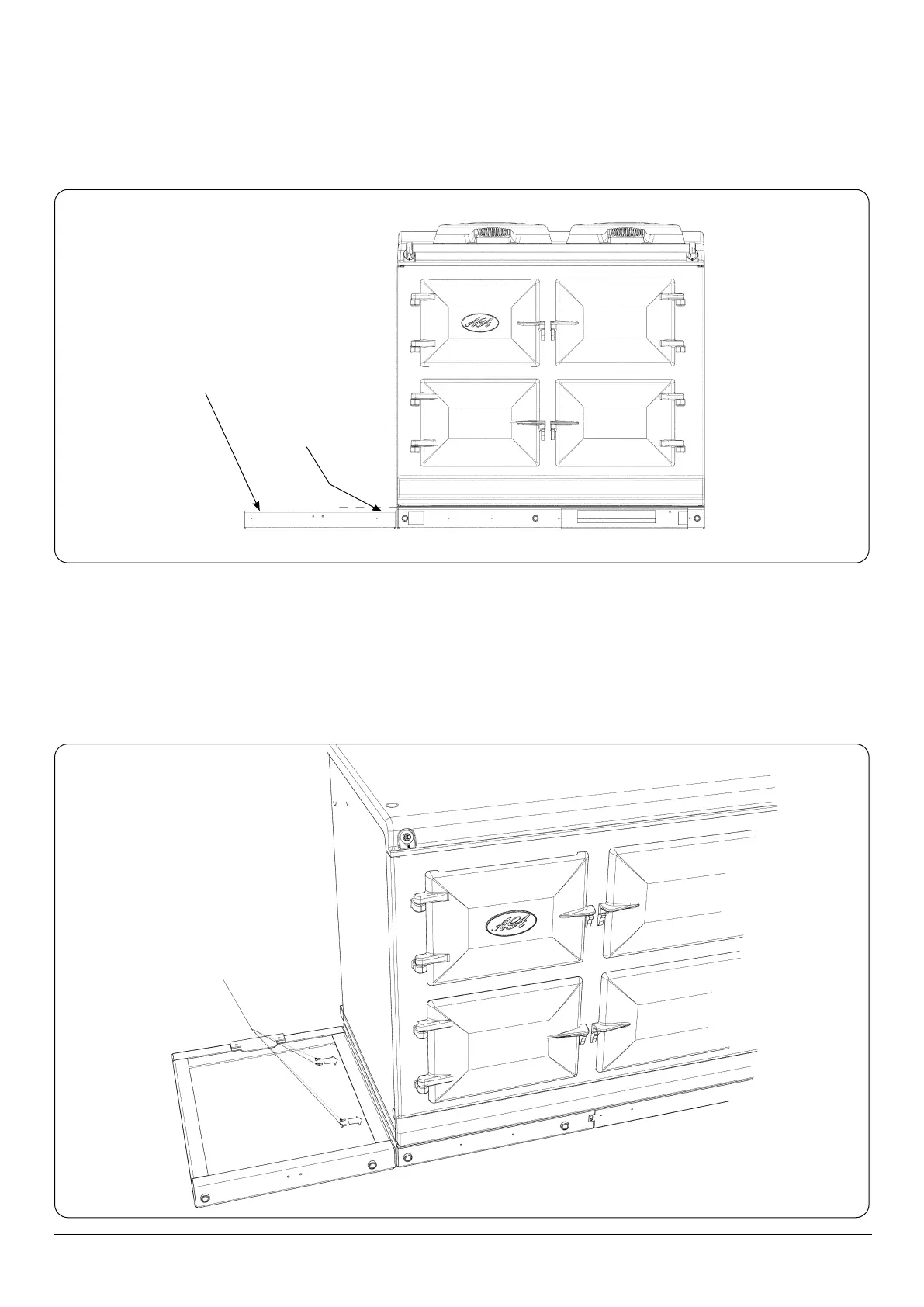

2. Position the plinth alongside the AGA R7 leaving no gap between the two plinths (Fig. 17.3).
Check with a spirit level that the plinth level is correct, and also check height dierential between the hotcupboard plinth and
R7 100 plinth is correct ⁄” (11mm). If necessary, use shims in each corner to level the plinth.
DESN 516564
HOTCUPBOARD PLINTH
BASE
11mm HEIGHT
DIFFERENTIAL
3. Attach hotcupboard plinth to the AGA R7 plinth using M6 screws and washers provided (Fig. 17.4).
Attach locking screw and jacking screw into plinth. Make sure at this stage that the jacking screw does not protrude beyond
outer face of plinth. Ensure locking screw is located into AGA R7 100 plinth but not fully tightened. A gap of approximately
⁄” (3mm) should be present between the plinths apart from at the very front where the hotcupboard spacer plate should be
touching the AGA R7 100 plinth.
DESN 516550
+1
- 0
Fig. 17.3
Fig. 17.4
LOCKING
SCREW
