32

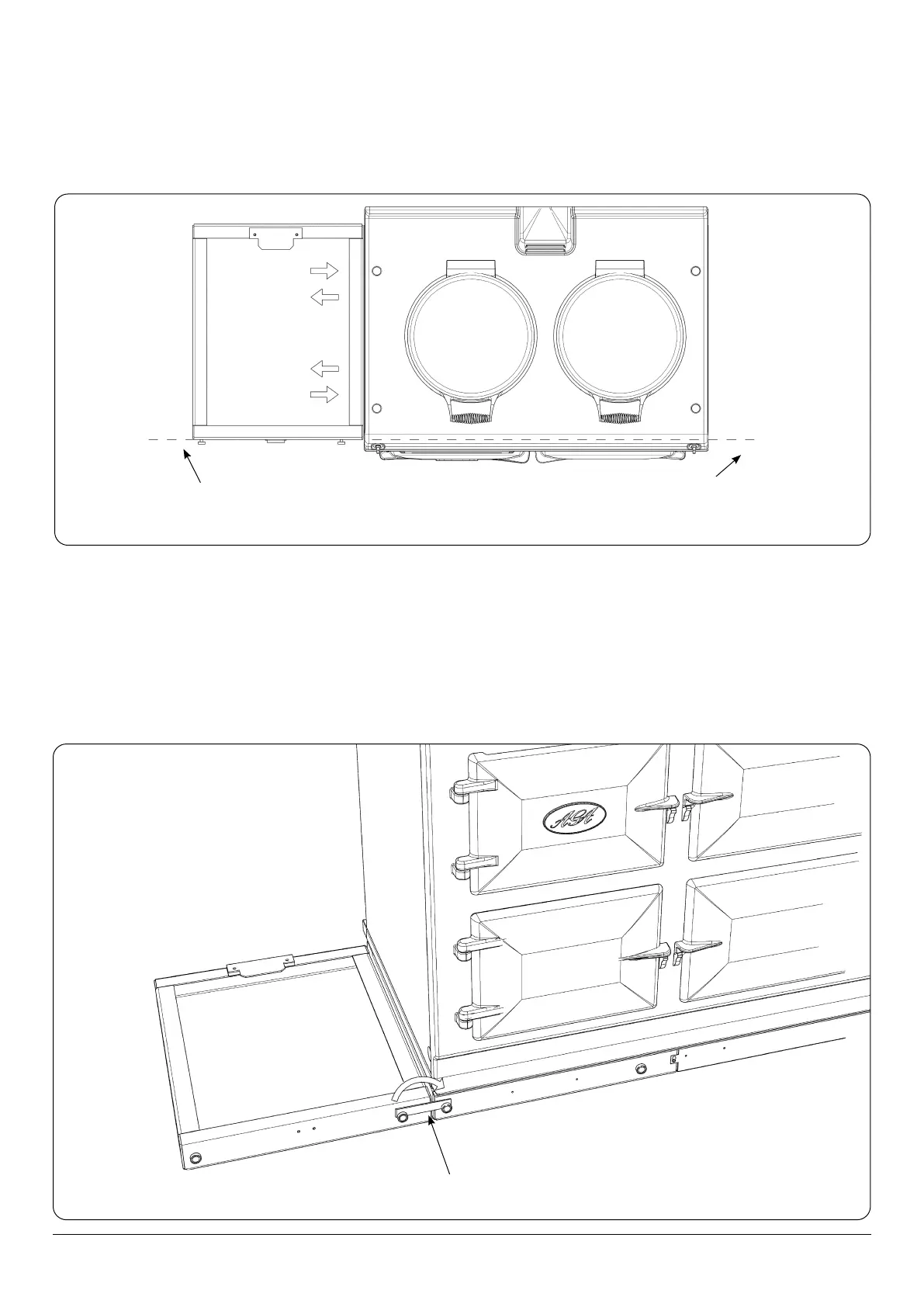

4. Run a straight edge along the front of the AGA R7 100 plinth, to ensure the front face of both plinths sit squarely against
the straight edge. (Fig. 17.5)
When satised both plinths sit squarely, jacking screws can be tightened until they just make contact with the AGA R7 100
plinth, and locking screws can now be tightened.
DESN 516551
USE STRAIGHT EDGE ACROSS BOTH PLINTHS TO ENSURE PLINTHS ARE ALIGNED
SQUARELY
DESN 516567
5. Front jointing bracket can now be hooked into place over the two pot magnets. This will latch the two plinths together.
(Fig. 17.6)
HOOK FRONT JOINTING BRACKET INTO PLACE TO LOCK TWO PLINTHS TOGETHER
Fig. 17.5
Fig. 17.6
