33
DESN 516552

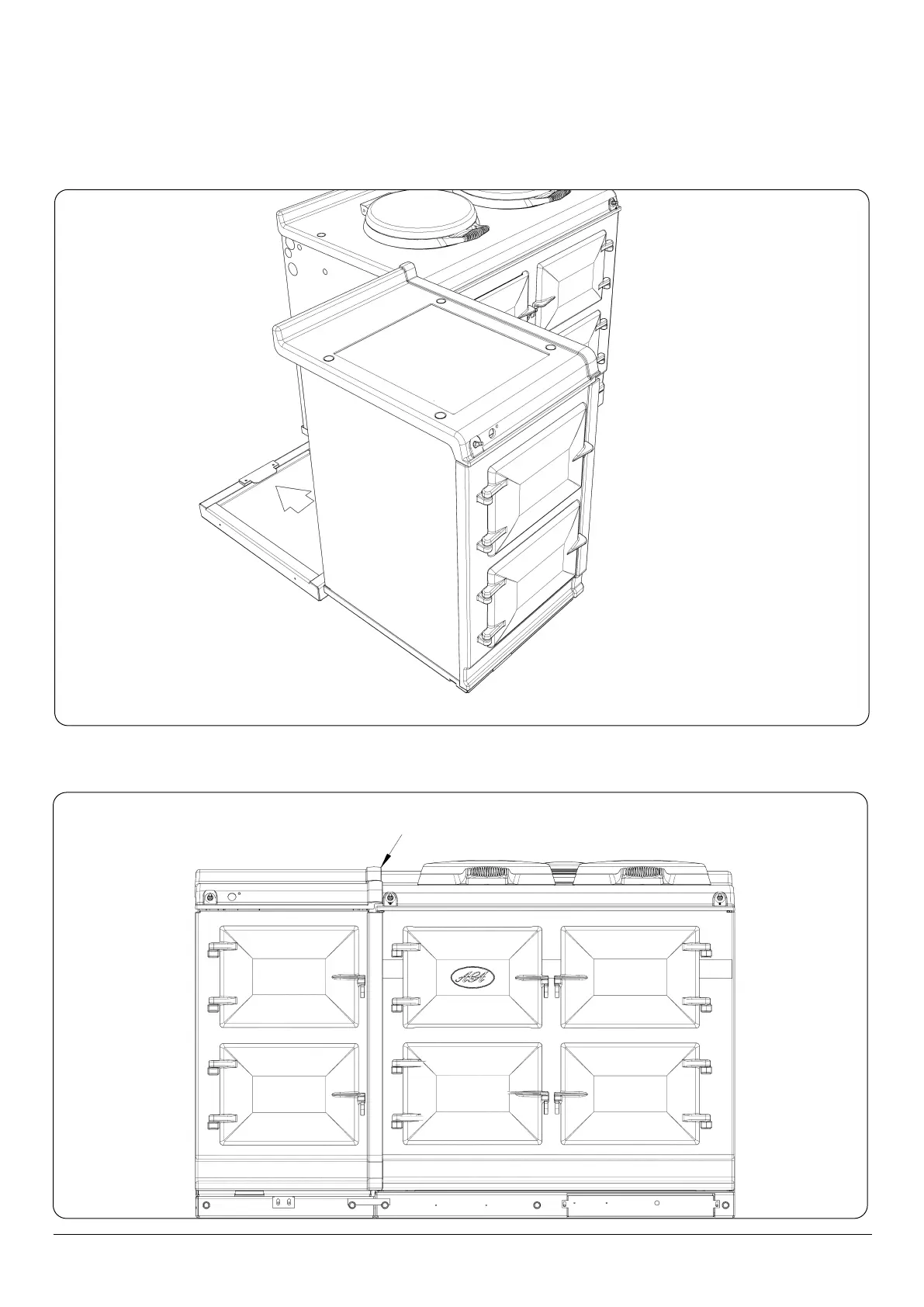

7. The hotcupboard top plate is set 5mm higher than the AGA R7 100 top plate. This is to prevent damage to the enamel
during installation. Lower the top plate using the adjusters (Fig. 17.8 and Fig. 17.9).
DESN 516554
6. Slide hotcupboard onto plinth until rear tongue bracket engages fully into rear of base slot, (Fig. 17.7). Ensure the
appliance is aligned squarely with the plinth then proceed to engage the front tongue bracket into the slot on the
underside of the base plate. Once satised that the front tongue bracket is engaged fully lock it into place by tightening
the two M6 screws fully. Ensure that the electrical cable does not come into contact with oven vent pipe from the AGA
R7.
Fig. 17.7
Fig. 17.8
⁄” (5mm) Height
Dierence
