Modification
Capacitor Kit d-lab.1
6
CM+9.8072.9003.0
AGFA d-lab.1
3.4.1

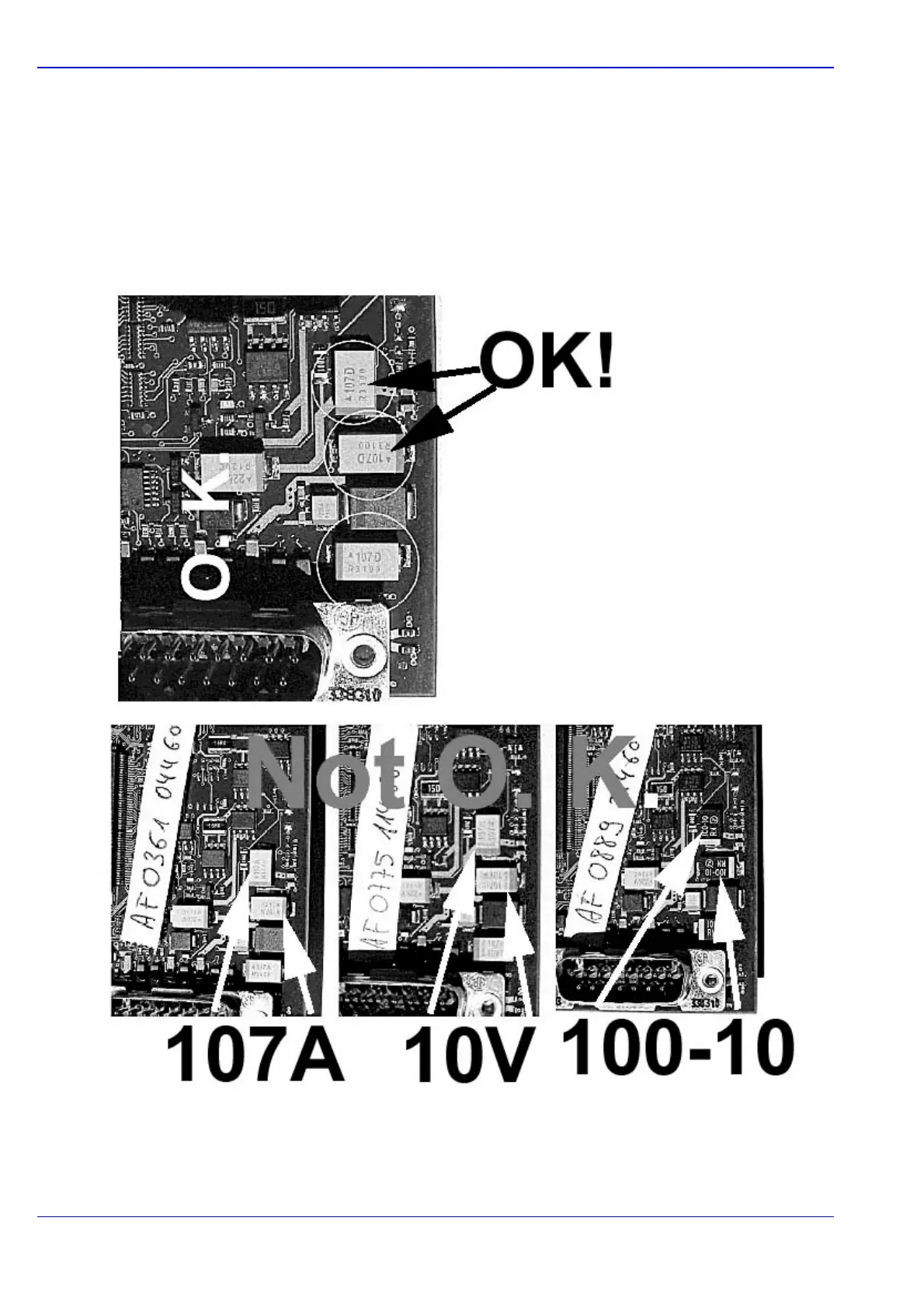

Wrong and correct capacitors
Wrong capacitors can be identified as follo
ws:
Yellow color:
„107A“ or „10V“ on top
Black color:
„100-1
0“ on top
Correct capacitors have „107D“ or „20V“ on top
