Modification
Capacitor Kit d-lab.1
10
CM+9.8072.9003.0
AGFA d-lab.1
3.5.2

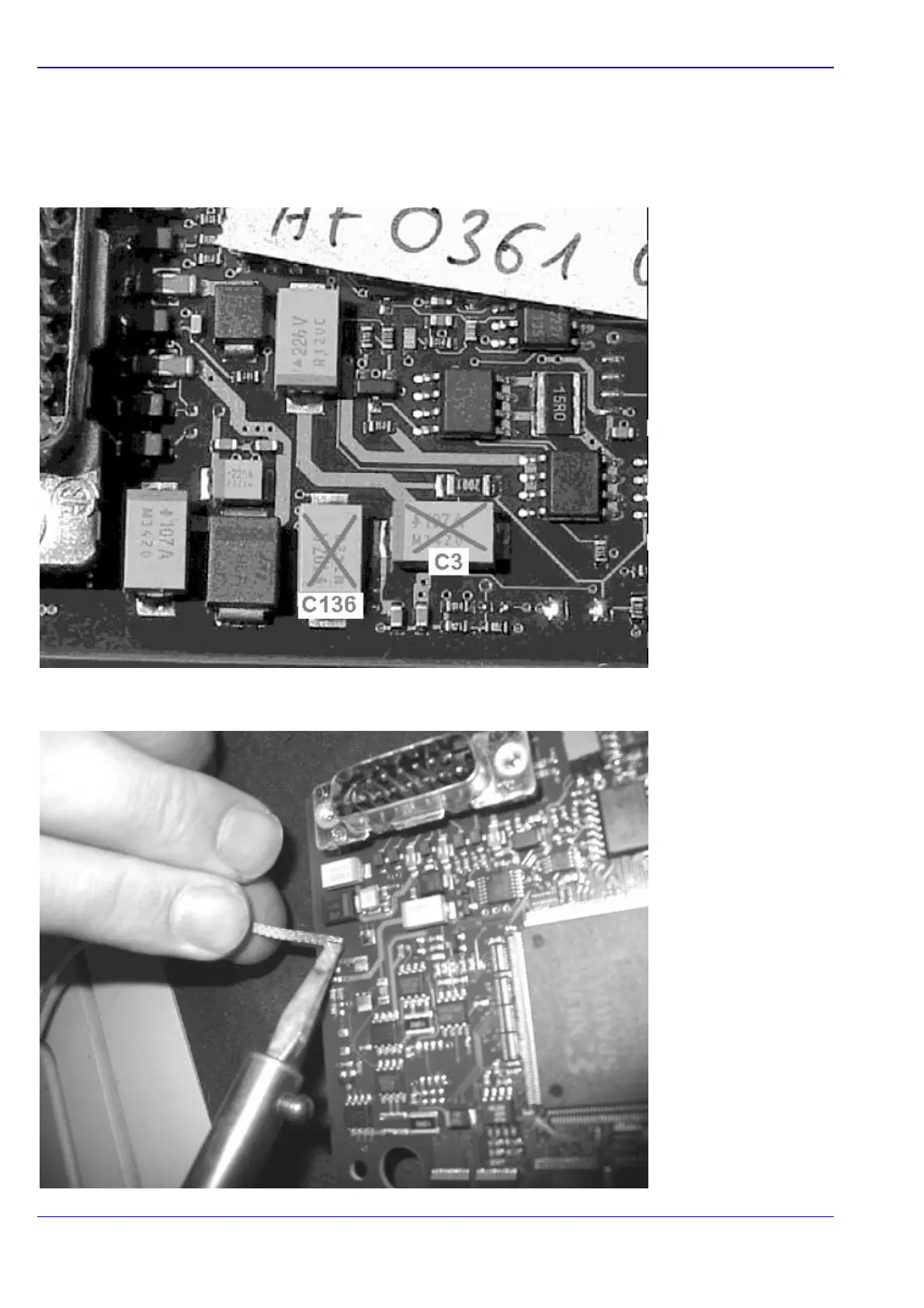

Removal of the wrong capacitors
To remove the 2 capacitors, use a pair of tweeze
rs
First remove C136, then C3
Use the solder wick to clean the 4 solde
ring points
12
14
Table of Contents
Table of Contents
3
List of Possibly Affected Machines
4
Contents of the Kit
4
Additional Tools
4
Modification
5
Some General Points before You Start
5
Information
5
Problem
5
Countermeasure
5
Preparation
5
Cover Removal
5
How to Check the Capacitors
8
Wrong and Correct Capacitors
9
Replacement of the Capacitors
10
Removal of the LCD Driver Board
10
Removal of the Wrong Capacitors
13
Installation of the New Capacitors
14
Reinstallation of the LCD Driver Board
15
Attachment
16
List of Possibly Affected Machines, Sorted by Serial Number
16
List of Possibly Affected Machines, Sorted by Country
27
