AGFA DX-D 40C - Configuration

Configuration
The DR Detector is a component that can be integrated in an X-ray system and
that communicates to a workstation. Multiple DR Detectors can communicate
to a single workstation. A DR Detector can be shared between multiple
workstations.
1
2
3
5
4
7 8
6
9
1.
DR Detector
2.
DR Detector battery
3.
DR Detector battery charger
4.
System Control Unit (including a wireless access point)
5.
Workstation
6.
Wireless access point
7.
Communication via System Control Unit
8.
Communication via wireless access point
9.
Communication via internal wireless adapter

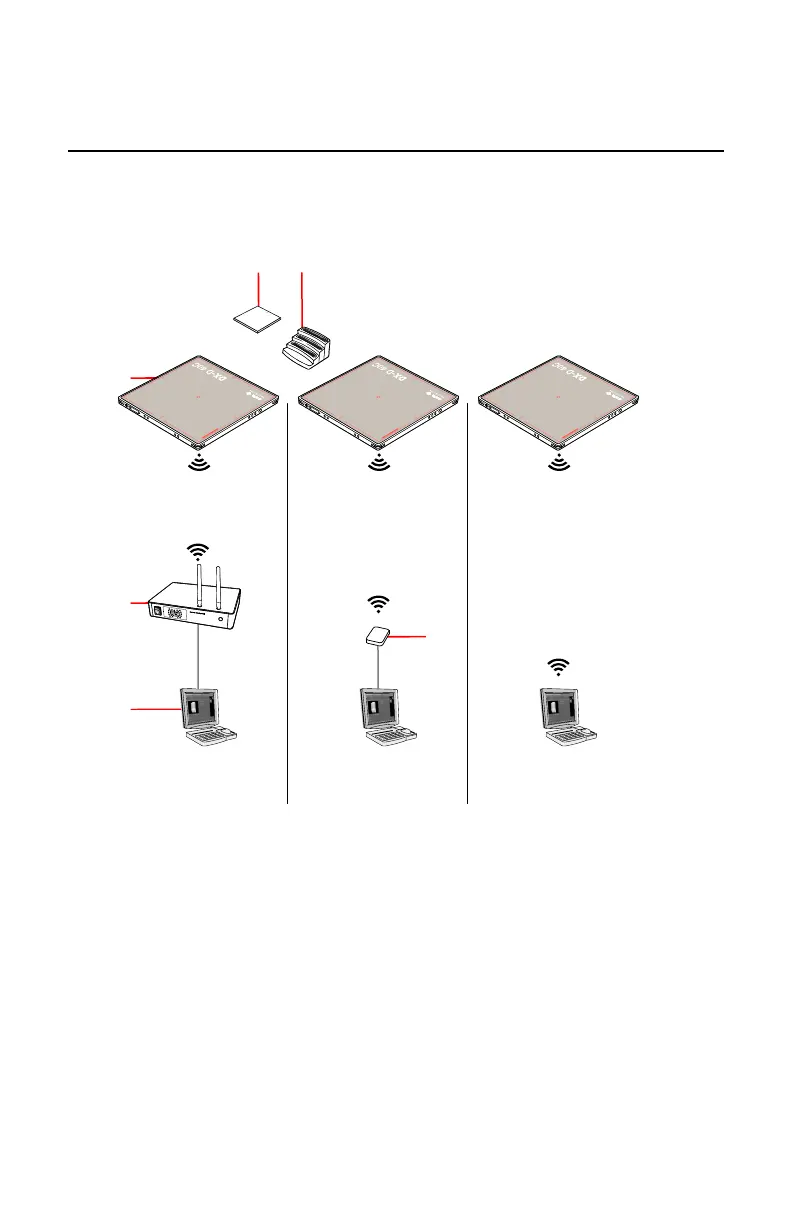

Figure 1: DR Detector configuration (wireless)
A DR Detector cannot be configured to communicate to more than one
workstation via the internal wireless adapter of the workstation.
