Pump Head Maintenance (Tool Free)

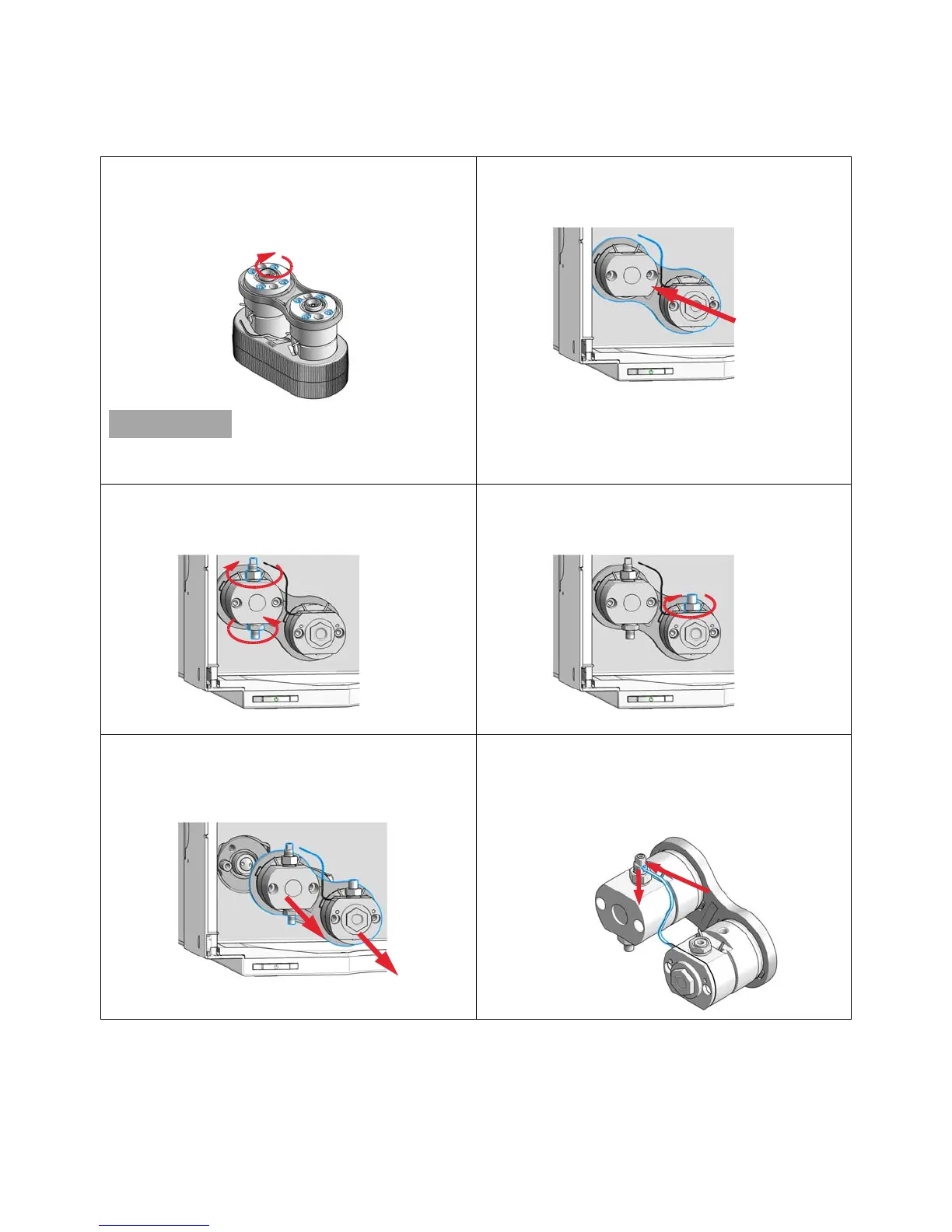

Assemble Long Life Pump Heads
15
Tighten the pump head screws with a torque wrench set to
approx. 5 Nm in a crosswise manner.
When the wrench clicks, the set torque is reached. Do not
overtighten the screws.
16
Mount the pump head to the module. Do not fix the screws at
this stage!
17
Screw in the inlet valve and the outlet valve and fix them with
a torque wrench set to approx. 10 Nm.
18
Binary/High Speed Pumps only: Screw in the high pressure
filter and fix it with a torque wrench set to approx. 16 Nm.
19
Remove the pump head from the module again.
20
Position the entrance slit for the heat exchanger capillary to
face exactly to it, and then seat the heat exchanger capillary
back into the outlet valve by moving it into the valve and
pressing it down.
10 Nm
10 Nm
approx.
approx.
