Pump Head Maintenance (Tool Free)
Assemble Long Life Pump Heads
21

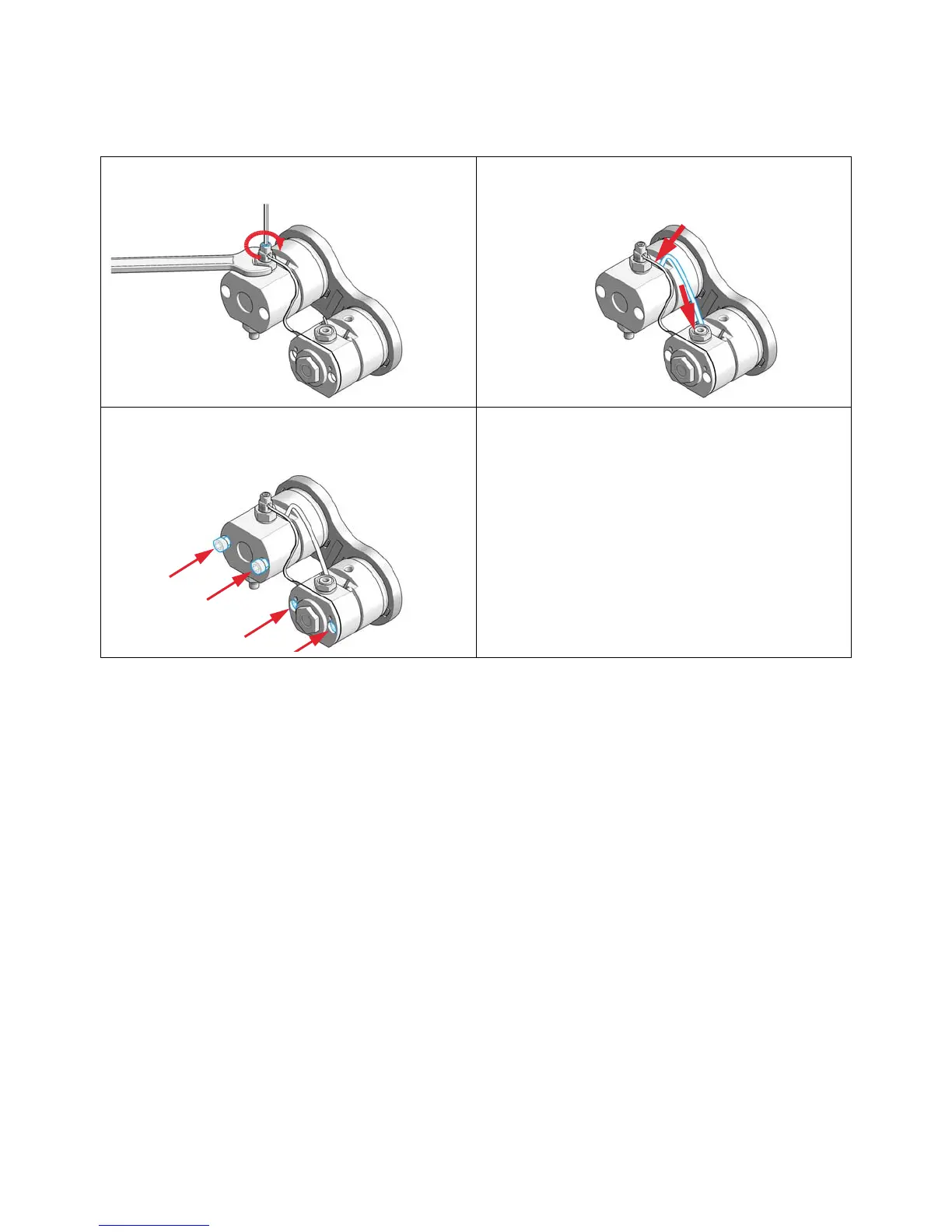

Counter the outlet valve and tighten the lock screw of the heat
exchanger capillary with a torque wrench set to approx. 3 Nm.
22
Attach the seal wash tubing interconnecting the two pump
heads.
23
Insert the screws that later fix the pump head assembly to the
module housing.
