Install the Seal Wash Function (Quaternary Pump)
Secondary Pump Head Parts
3 If installed for the first time, remove the pre-cut metal panel. 4 Install the new motor to the seal wash pump housing. Install
the grounding strip as shown.
5 Connect the seal wash pump motor to the main board,
connector P27, Seal wash (front, left).
6 Insert the seal wash pump housing to the module front panel
and fix it with the screw. If required, replace the seal wash
pump cartridge.

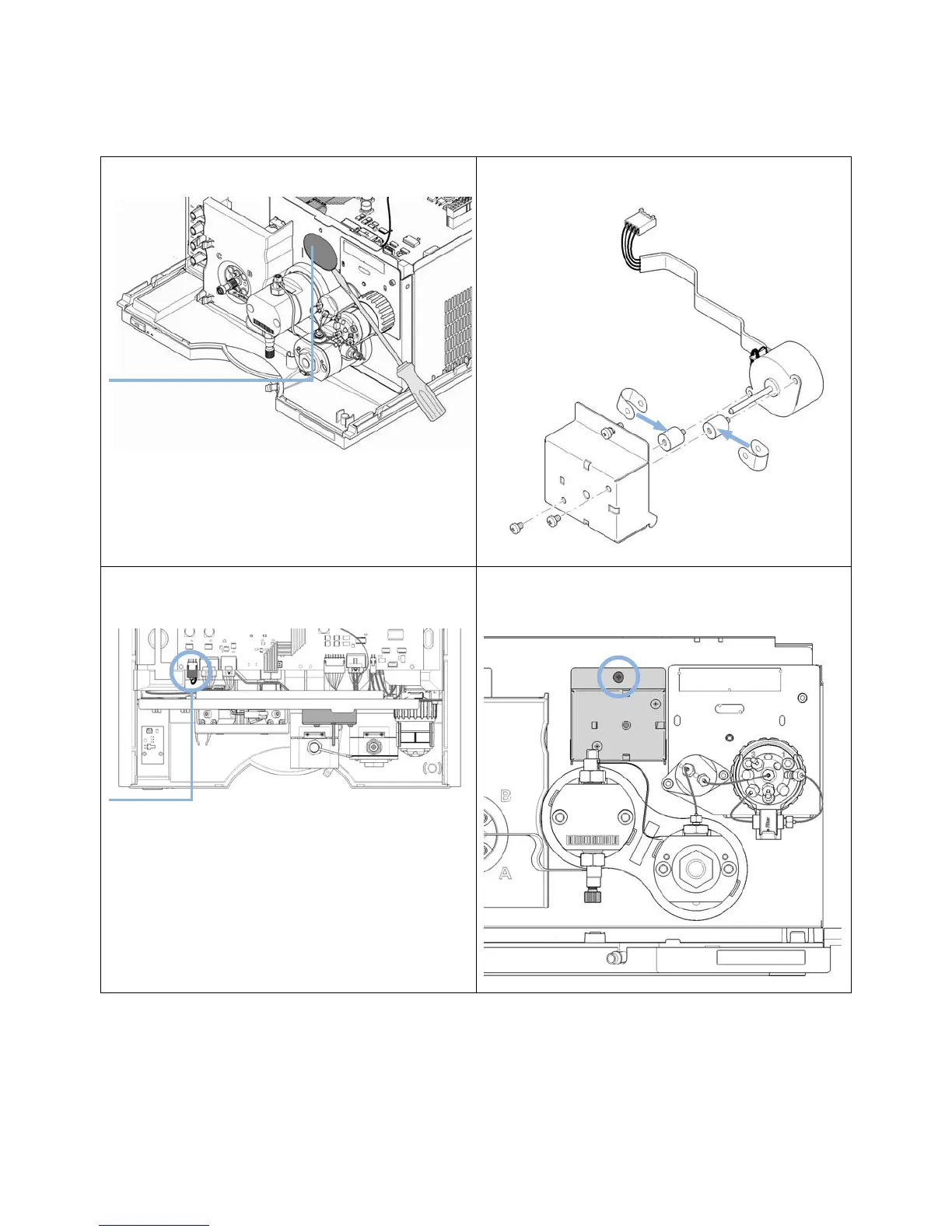

Pre-cut
metal panel
Seal wash pump motor
(connector P27)
