Saving (printing) screen images to floppy disk
Saving (printing) screen images to floppy disk
1Press the Save/Recall key to display the Save/Recall menu.
2Press the
Formats softkey to display the Formats menu.

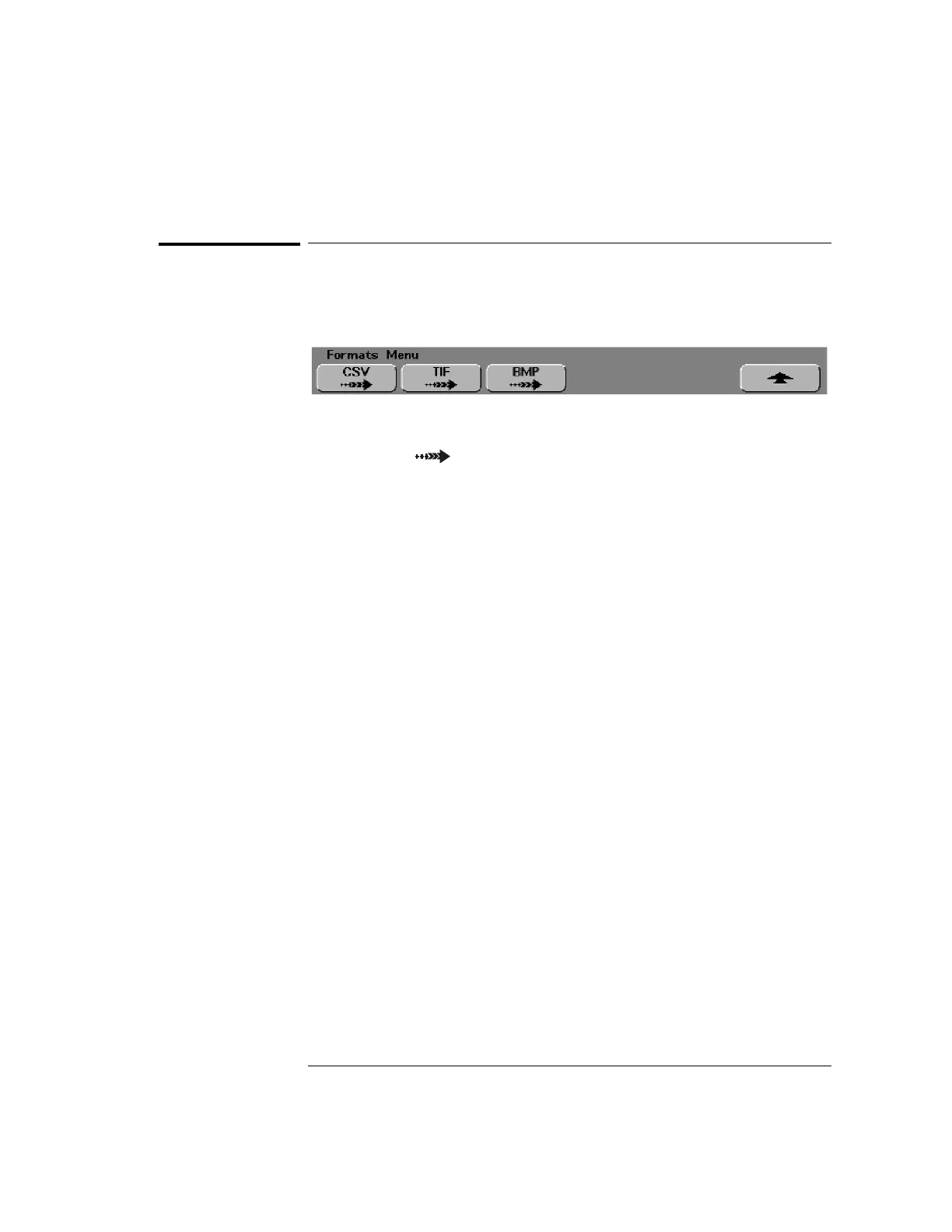

The Formats menu allows you to quickly configure the Quick Print menu to save
images to the floppy disk. Pressing one of the image format softkeys in this
menu will link ( ) you to the Utility -> Print Confg menu and allow you to
send TIF, BMP, or CSV formatted data to the floppy disk.
To print a hardcopy of the screen image directly to a printer, configure the
printer in the Utility -> Print Confg menu, then press the Quick Print key.
3Press the CSV, TIF, or BMP softkey.
You are linked to the Utility -> Print Confg menu. The print configuration is
automatically set to print to the floppy disk in the format you selected.
CSV data (comma-separated variable) are values of displayed channels and
math waveforms suitable for spreadsheet analysis. You can also change the
length of the CSV file when you are in the Print Confg menu.
BMP and TIF data formats print the complete screen image, including the status
line and softkeys. You can also choose to print oscilloscope Factors when you
are in the Print Confg menu.
4 Press the front-panel Quick Print key to start the transfer to the floppy
disk.
For further information about setting up your printer, see the “Utility” chapter.
