Making Measurements
Making time measurements automatically
X at Min
X at Min is the X axis value (usually time) at the first displayed occurrence of
the waveform Minimum, starting from the left-side of the display. For periodic
signals, the position of the minimum may vary throughout the waveform. The
X cursor shows where the current X at Min value is being measured.
Isolating an event for frequency measurement
The following figure shows how to use delayed sweep to isolate an event for a
frequency measurement. If the measurement is not possible in the delayed time
base mode, then the main time base is used. If the waveform is clipped, it may
not be possible to make the measurement.

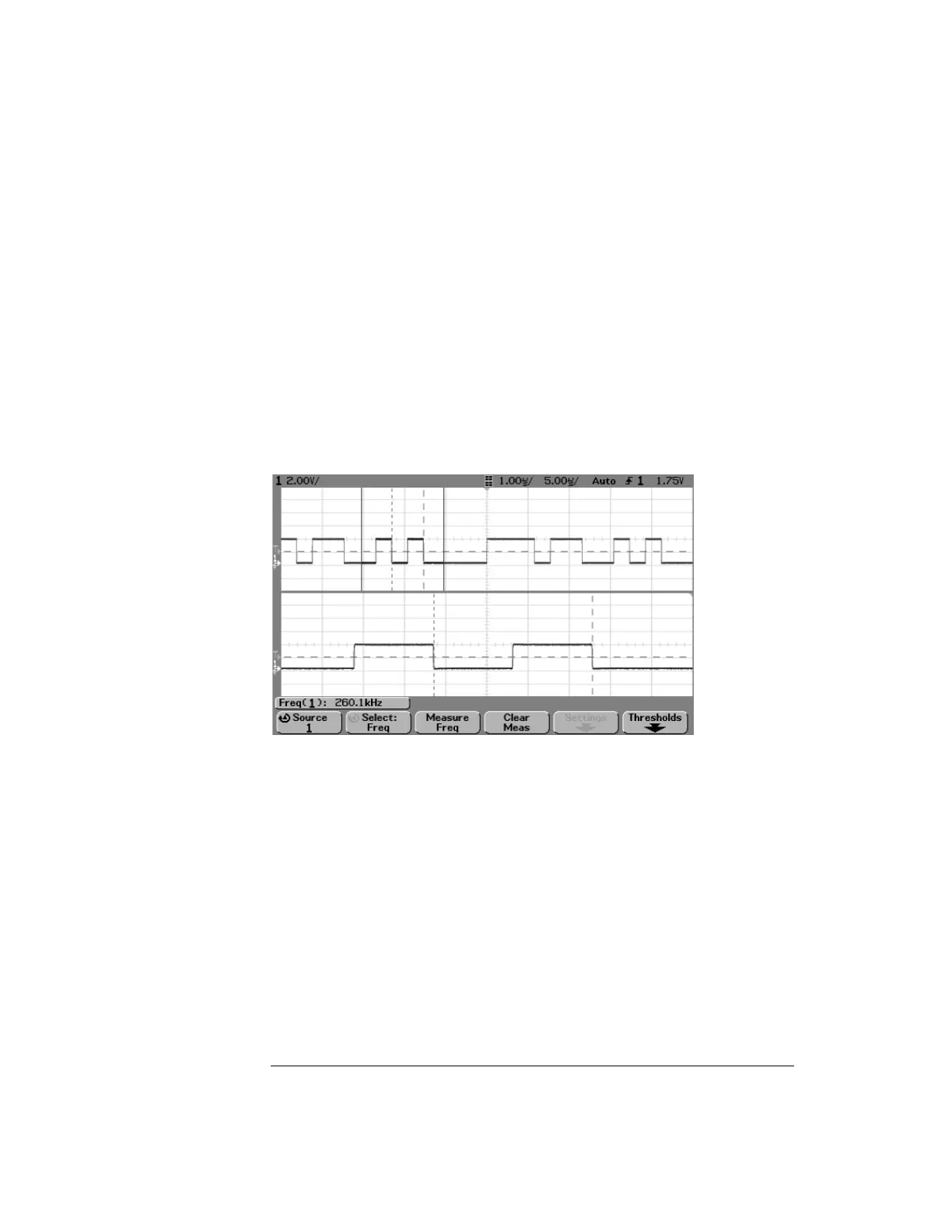

Isolating event for Frequency measurement
