Installation

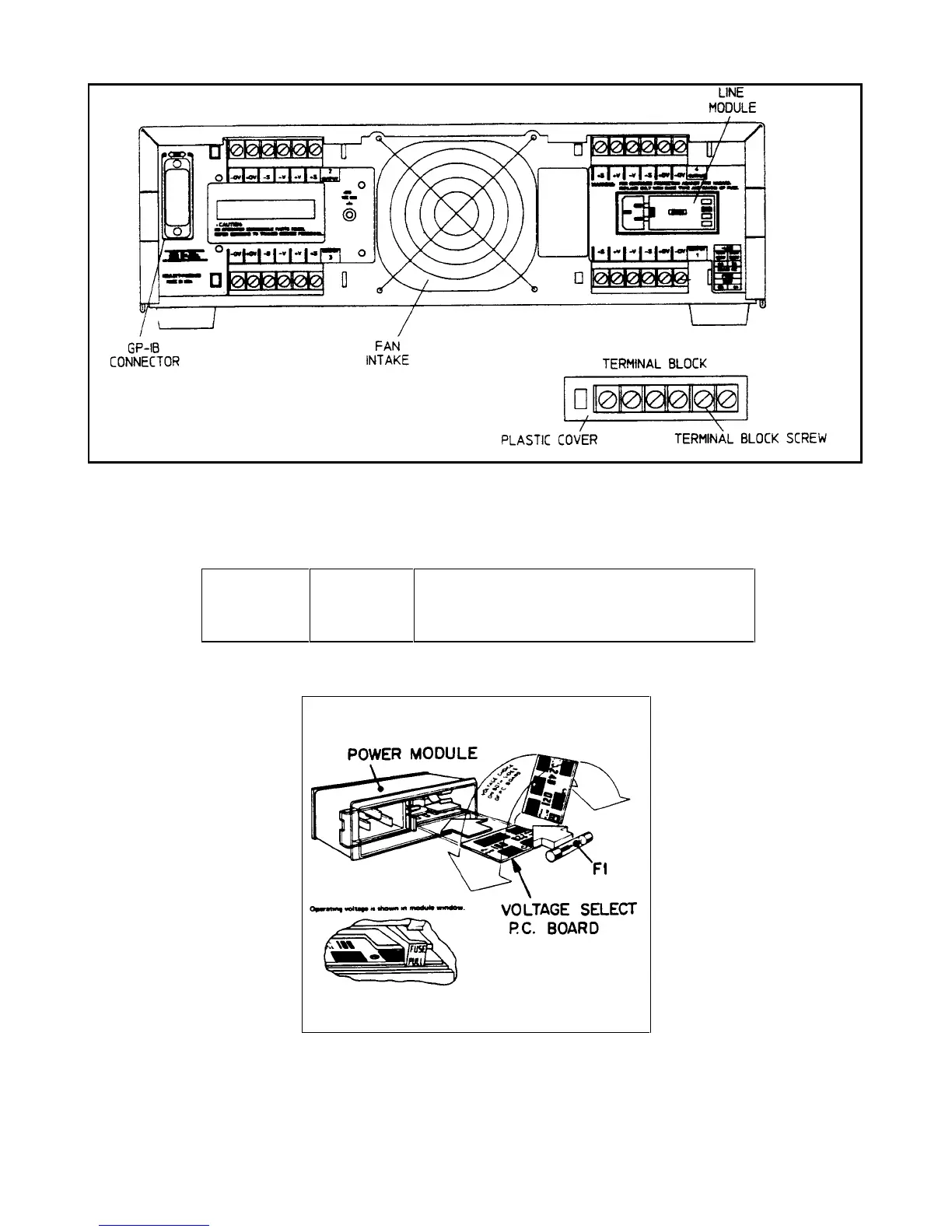

Figure 2-2. Rear Panel Detail (Agilent 6626A Shown)

Table 2-2 Line Fuses

Line

Voltage

Fuse

Needed

Agilent Part Number (for ¼ X 1¼ in. fuses

only)

100/120 V 8AM 2110-0342

220/240 V 4AM 2110-0055

Note: All fuses are rated for 250 V.

Figure 2-3. Line Module Detail
