Agilent Technologies 6631B

1 – Quick Reference
10

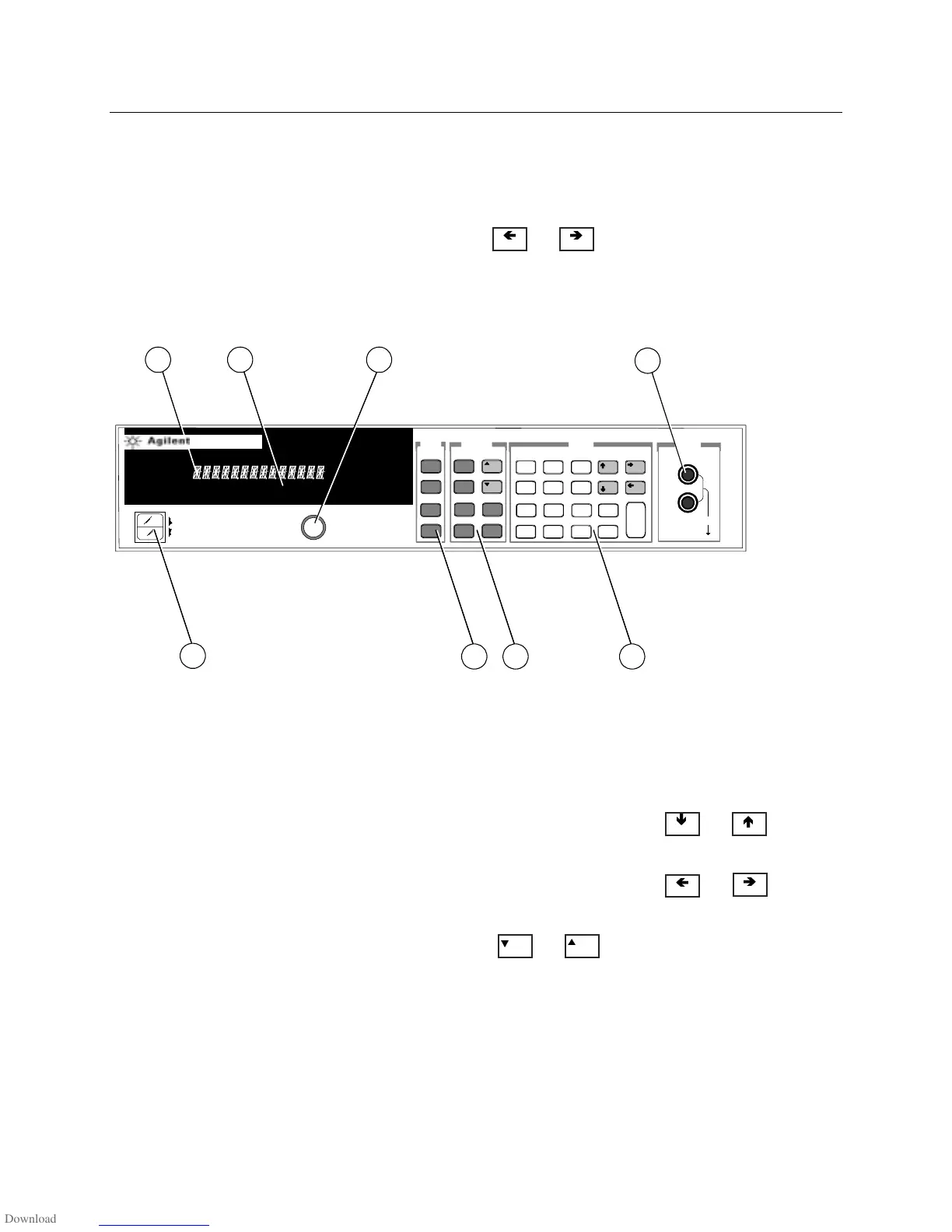

The Front Panel - At a Glance
j14-character display
shows output
measurements and
programmed values.
kAnnunciators
indicate operating
modes and status
conditions.
lRotary control
sets voltage, current,
and menu parameters.
Use and
to set the resolution;
then adjust the value
with the knob.
mOptional front
panel output
connectors.
66XXA
Dynamic Measurement DC Source
0-20V / 02A
CV CC
Unr Dis OCP
Prot
Cal Shift Rmt Addr Err SRQ
240 VDC
Max
+_
+
-
LINE
On
Off
SYSTEM
FUNCTION
ENTRY
OUTPUT
Local
Error
Address
Save
Recall
Shift
Input
Meter
OV
Voltage
OCP
Current
Cal
Output
Prot Clear
Protect
Output
on/off
7
4
1
0
8
5
2
.
9
6
3
-
Clear
Entry
Back
space
Enter
1 2 3
5
6 7 8
4
nTurns the dc source
on and off.
o System keys:
♦ return to Local
mode
♦ set the GPIB
address
♦ set the RS-232
interface
♦ display SCPI
error codes
♦ save and recall
instrument states.
p Function keys:
♦ enable/disable
output
♦ select metering
functions
♦ program voltage
and current
♦ set and clear
protection
functions
♦ and
scroll through the
front panel menu
commands.
qEntry keys:
♦ enter values
♦ increment or
decrement values
♦ and
select front panel
menu parameters.
♦ and
select a digit in
the numeric entry
field.
