To set the operating mode and trigger mode as required, do the following:
Before setting any values, press the Store/Recall key and press the
Set to Defaults softkey. Confirm the action by pressing the Yes
softkey.
Press Ch 1 key to select channel 1.
Press the normal and inverted output keys to enable both outputs of
channel 1.
The Continuous trigger mode is enabled by default. Therefore, we
only need to select a Pulse waveform. To select a Pulse waveform,
simply press the Pulse key given on the Front Panel. This brings you

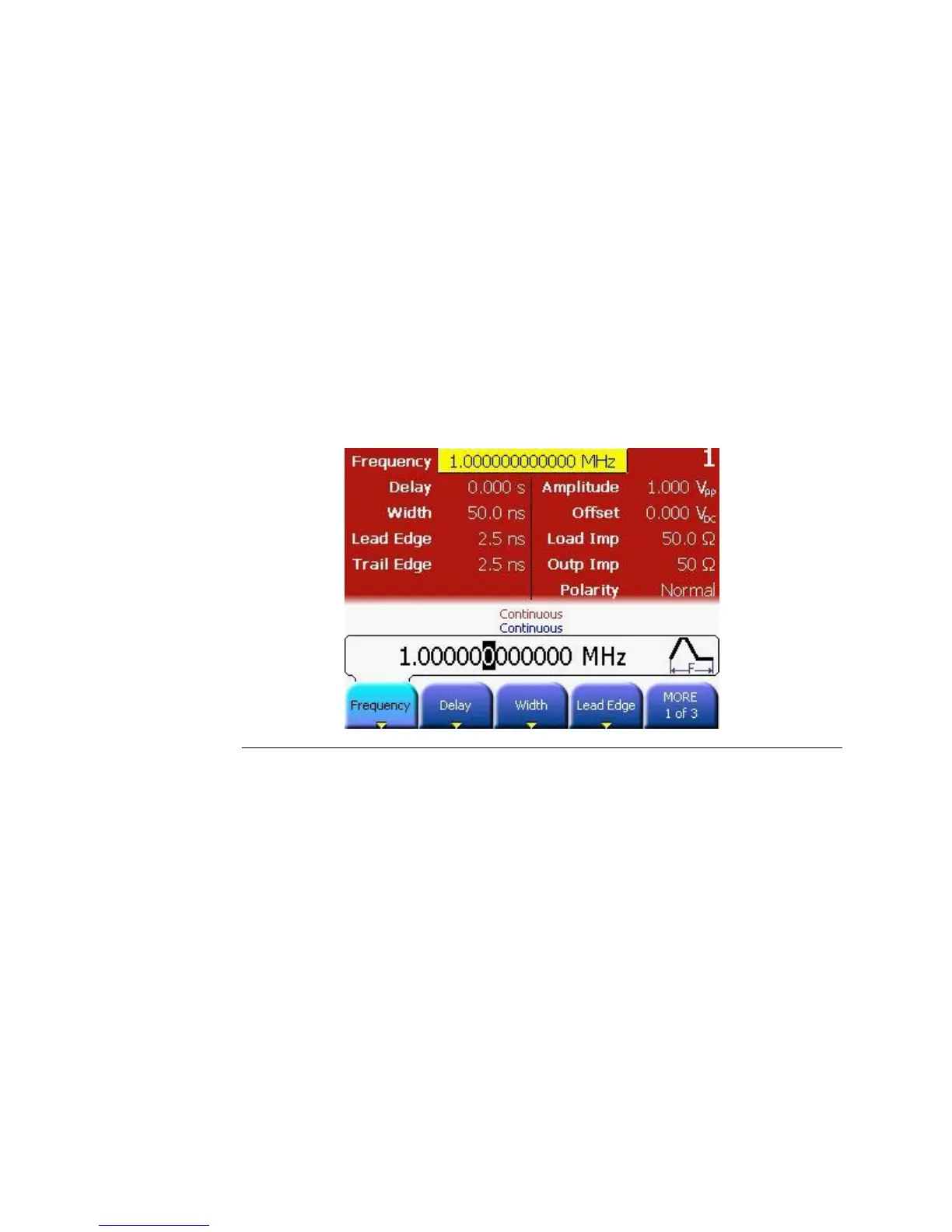

to the screen shown below.
To Next Page
