Getting Started
81150A and 81160A Getting Started Guide 75
3.9.2 Settings for Channel 2
Setting the
Frequency
To set the operating mode and trigger mode as required, do the following:
 Press the Ch 2 key to select Channel 2.
 The Continuous trigger mode and Sine waveform are set by default.

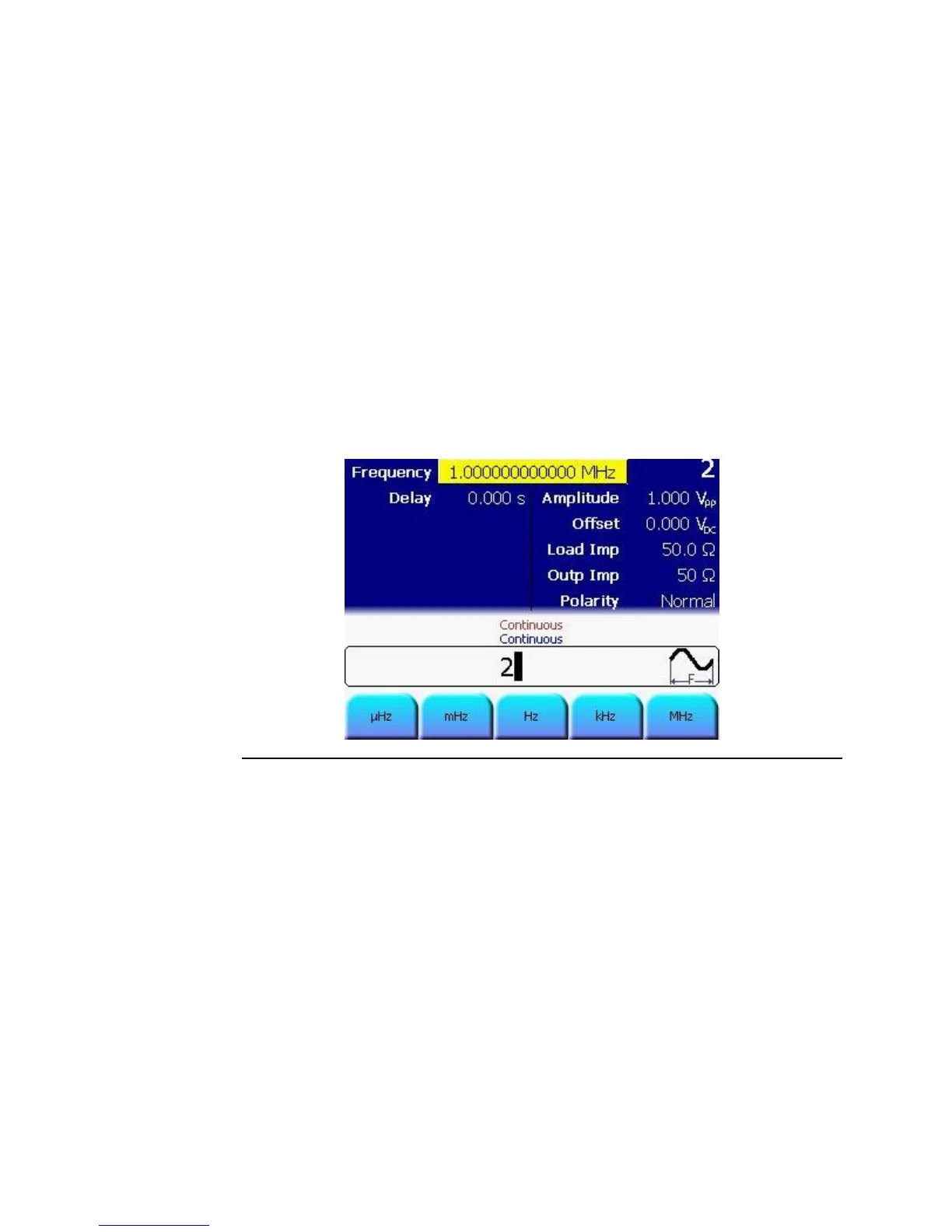

 Press the Frequency softkey to select frequency. Set the value to 2
MHz.
 For setting the value, you can use the Numeric Keypad or the Rotary
Knob.
 From the various available options, choose the desired unit by simply
pressing it.
