Getting Started
3.10.2 Settings for Channel 2
Selecting a Pulse
waveform
To set the operating mode and trigger mode as required, do the following:
Press the Ch 2 key to select Channel 2.
The Continuous trigger mode and Pulse waveform were copied from
Channel 1 when we enabled Coupling. Therefore, we do not change
these settings.
By default, the Frequency is already set to 1 MHz, therefore we do
not change it.

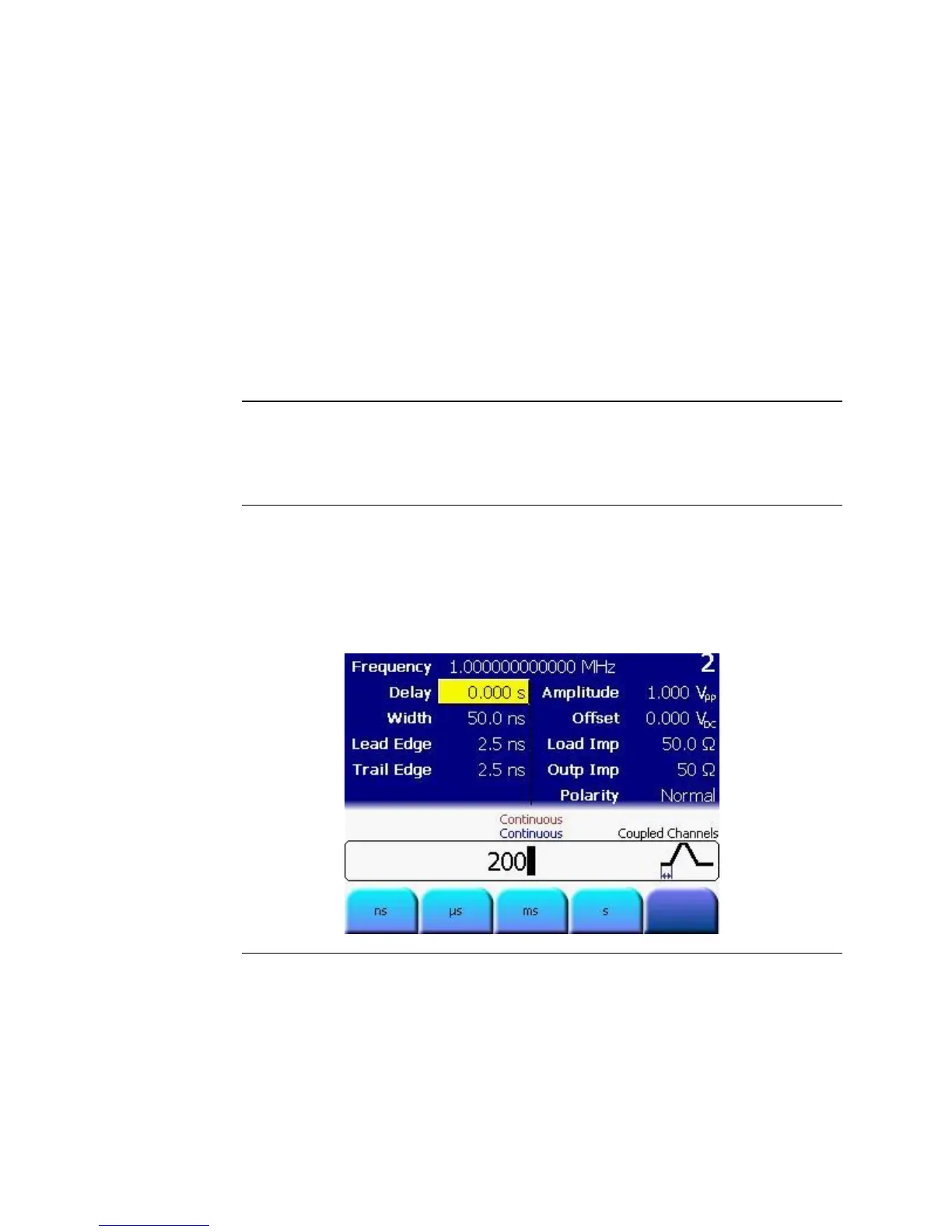

Press the Delay softkey and set the value to 200 ns.
For setting the value, you can use the Numeric Keypad or the Rotary
Knob.
