Getting Started
81150A and 81160A Getting Started Guide 83
3.10 Adding up Channel 1 and Channel 2
Task
To perform Channel Addition, let us enable the following settings:
For Channel 1: Continuous Pulse with frequency 1 MHz, width 500 ns,
delay 0 s, lead edge 75%, trail edge 50%, offset 0 V and amplitude 3 Vpp.
For Channel 2: Continuous Pulse with frequency 1 MHz, width 10 ns,
delay 200 ns, lead edge 2.5 ns, trail edge 2.5 ns, offset 0 V and amplitude
2 Vpp.
 This example requires a 2 channel version of the 81150A or 81160A.

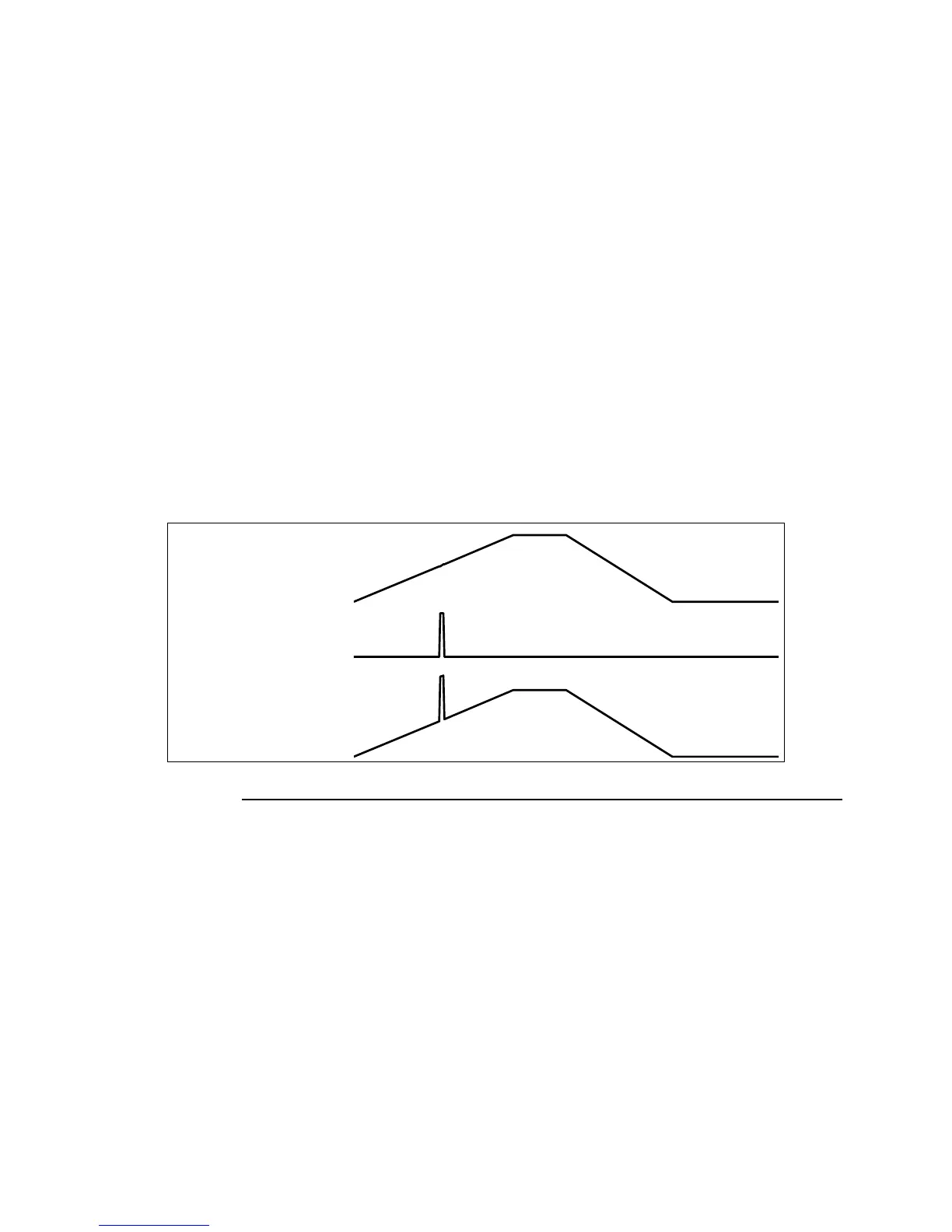

Channel 1 (setting)
Channel 2
Output of Channel 1
