Getting Started
81150A and 81160A Getting Started Guide 43
Selecting a Pulse
Waveform
To set the operating mode and trigger mode as required, do the following:
Before setting any values, press the Store/Recall key and press the
Set to Defaults softkey.
Press the Ch 1 key to select channel 1.
Press the normal and inverted output keys to enable both outputs of
channel 1.
Press Pulse to select it as the waveform type.

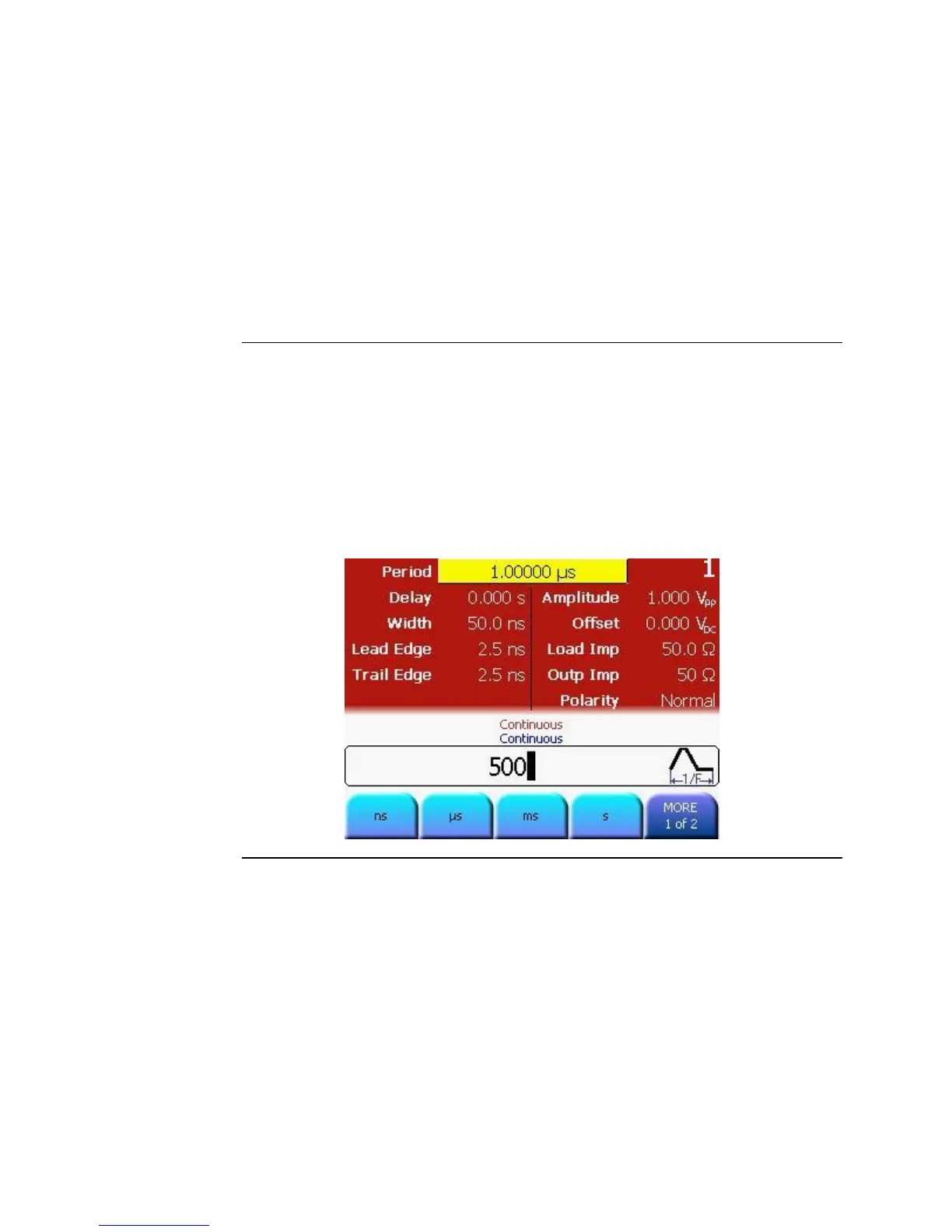

Pressing the Frequency softkey selects frequency. Press it again to
toggle to Period softkey. Set the value of the Period to 500ns.
For setting the value, you can use the Numeric Keypad or the Rotary
Knob.
From the various available options, choose the desired unit by simply
pressing it.
To Next Page
