To set the operating mode and trigger mode as required, do the following:
Before setting any values, press the Store/Recall key and press the
Set to Defaults softkey.
Press the Ch 1 key to select channel 1.
Press the normal and inverted output keys to enable both outputs of
channel 1.
The Continuous trigger mode and Sine waveform are set by default.

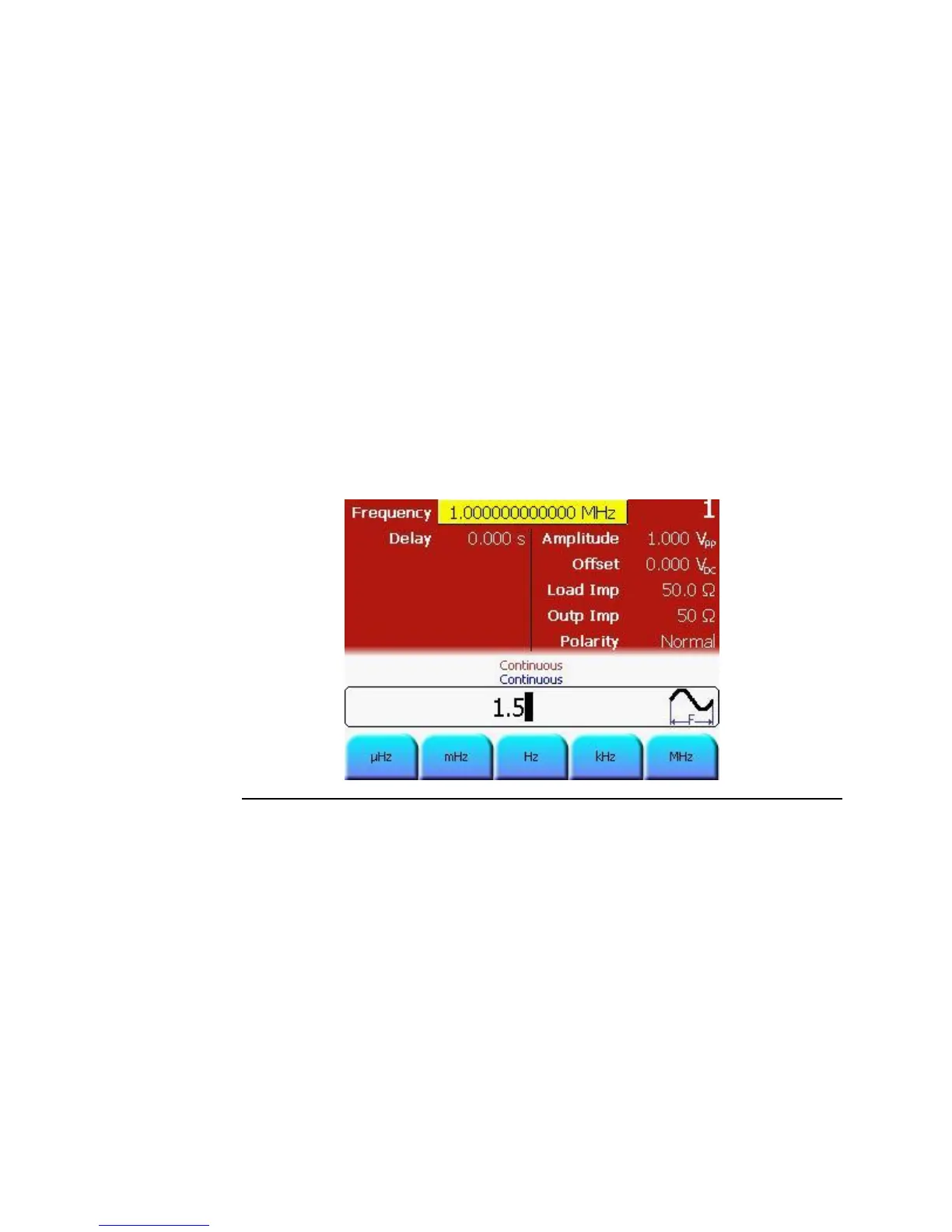

Press the Frequency softkey to select frequency. Set the value to 1.5
KHz.
For setting the value, you can use the Numeric Keypad or the Rotary
Knob.
From the various available options, choose the desired unit by simply
pressing it.
