To set the operating mode and trigger mode as required, do the following:
Before setting any values, press the Store/Recall key and press the
Set to Defaults softkey.
Press the Ch 1 key to select channel 1.
Press the normal and inverted output keys to enable both outputs of
channel 1.
The Continuous trigger mode and Sine waveform are enabled by
default.
The Frequency is also set to 1 MHz by default.

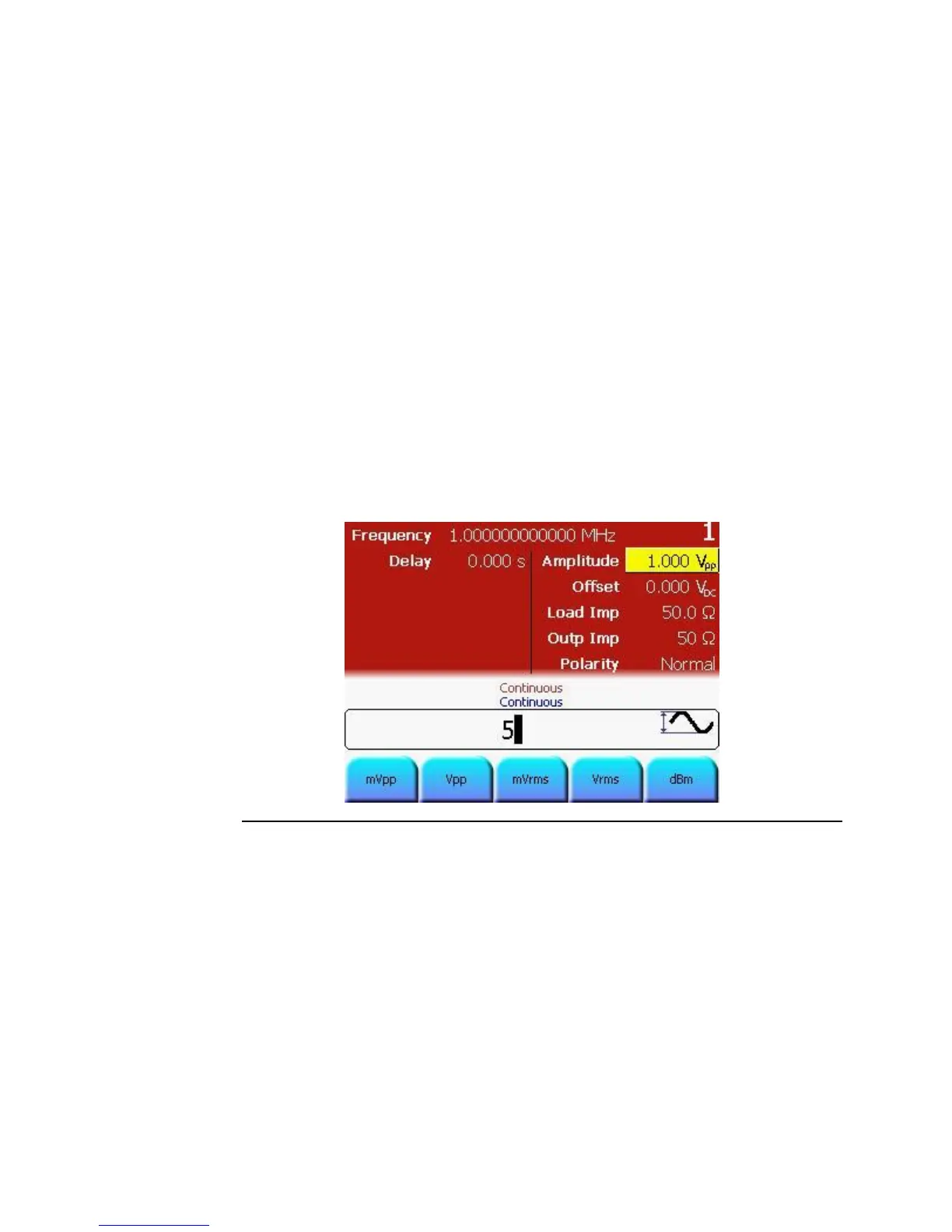

Press the Ampl softkey to set the Amplitude to 5 Vpp. From the
various available options, choose the desired unit by simply pressing
it.
For setting the value, you can use the Numeric Keypad or the Rotary
Knob.
