Setting the
Operating and
Trigger mode
To set the operating mode and trigger mode as required, do the following:
 Before setting any values, press the Store/Recall softkey and press
the set to defaults softkey.
 Press the Ch 1 key to select channel 1.
 Press the normal and inverted output keys to enable both outputs of
channel 1.
 The Sine waveform is set by default.

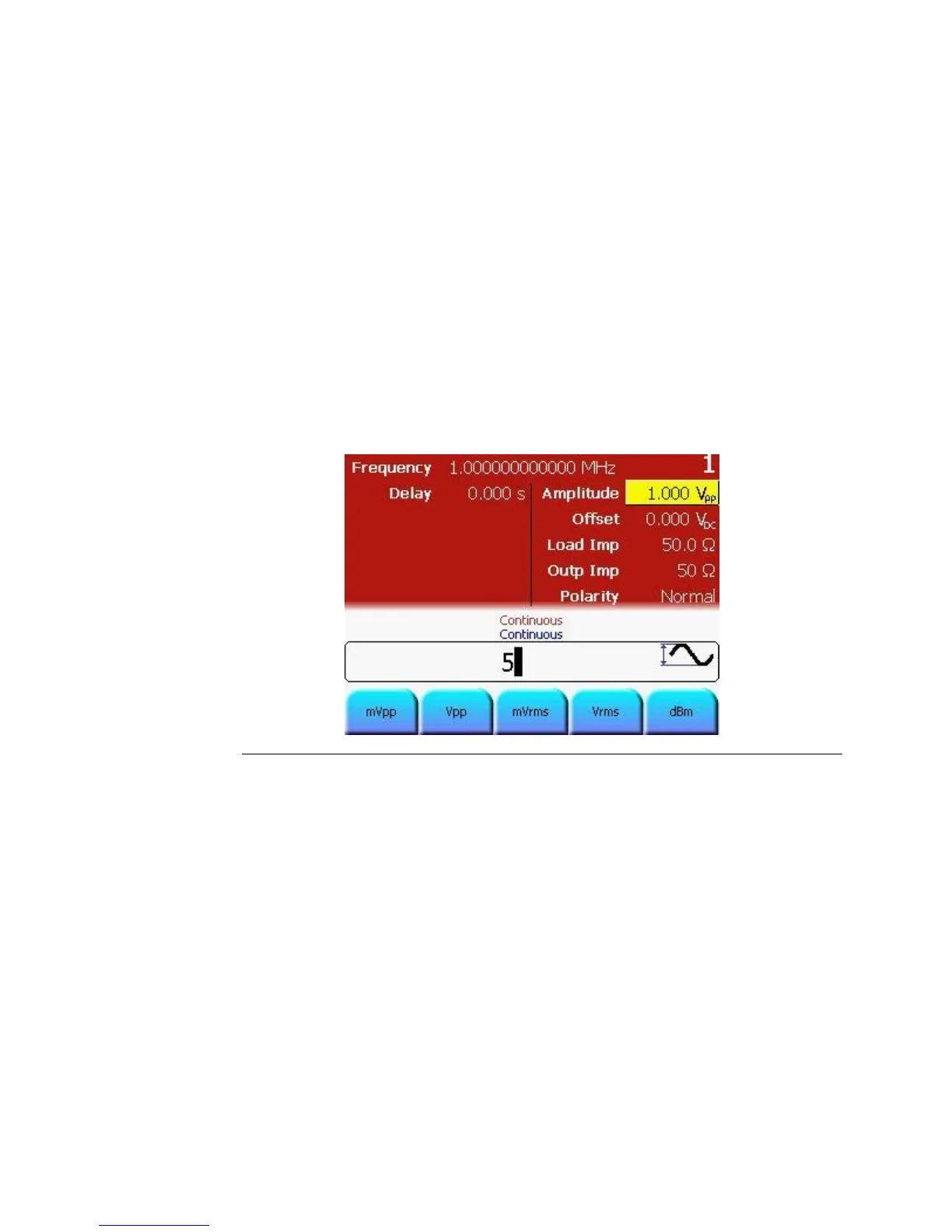

 Press the Ampl softkey to set the Amplitude of the carrier sinewave
to 5Vpp.
 For setting the value, you can use the Numeric Keypad or the Rotary
Knob.
