To set the operating mode and trigger mode as required, do the following:
Before setting any values, press the Store/Recall softkey and press
the set to defaults softkey.
Press the Ch 1 key to select channel 1.
Press the normal and inverted output keys to enable both outputs of
channel 1.
The Sine waveform is set by default.

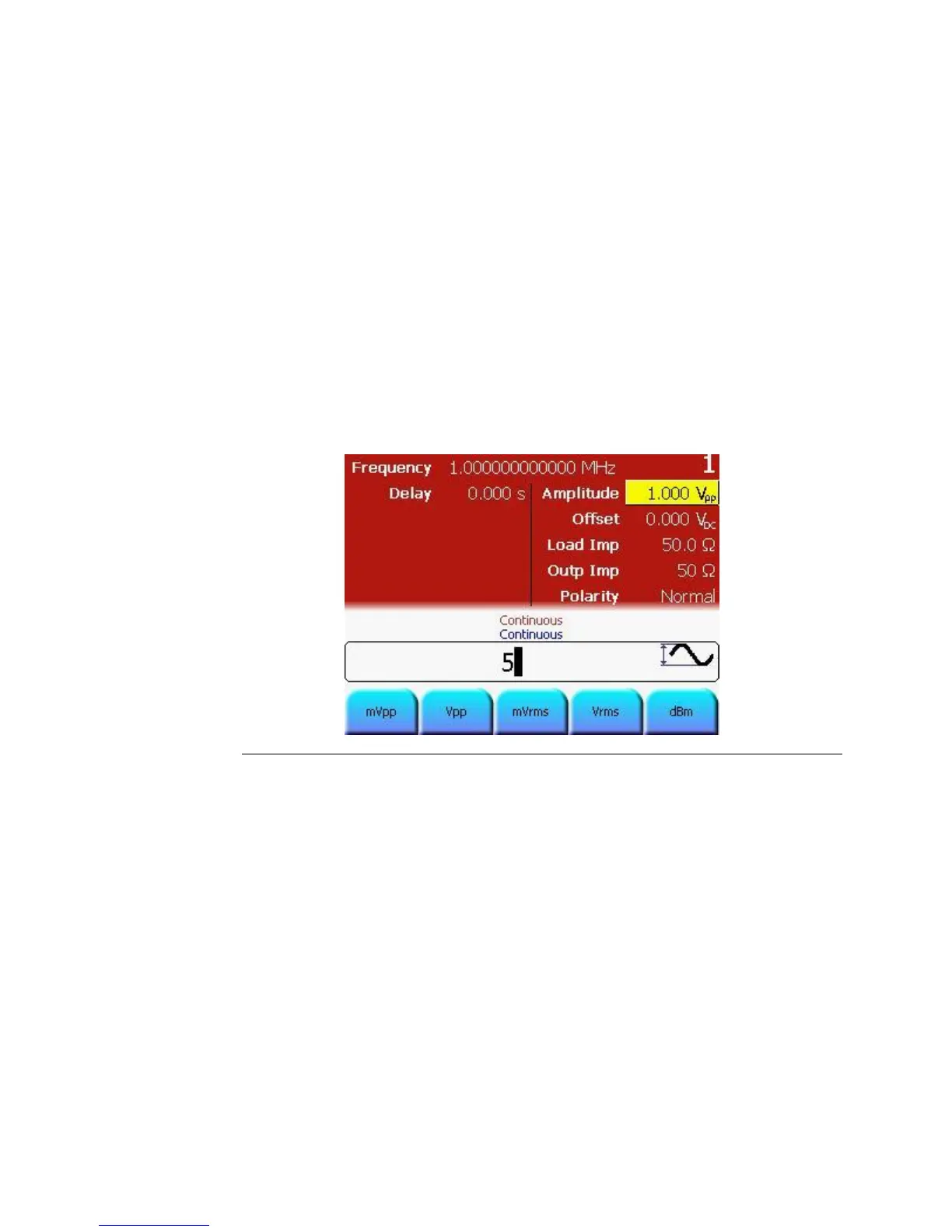

Press the Ampl softkey to set the Amplitude of the carrier sinewave
to 5Vpp.
For setting the value, you can use the Numeric Keypad or the Rotary
Knob.
