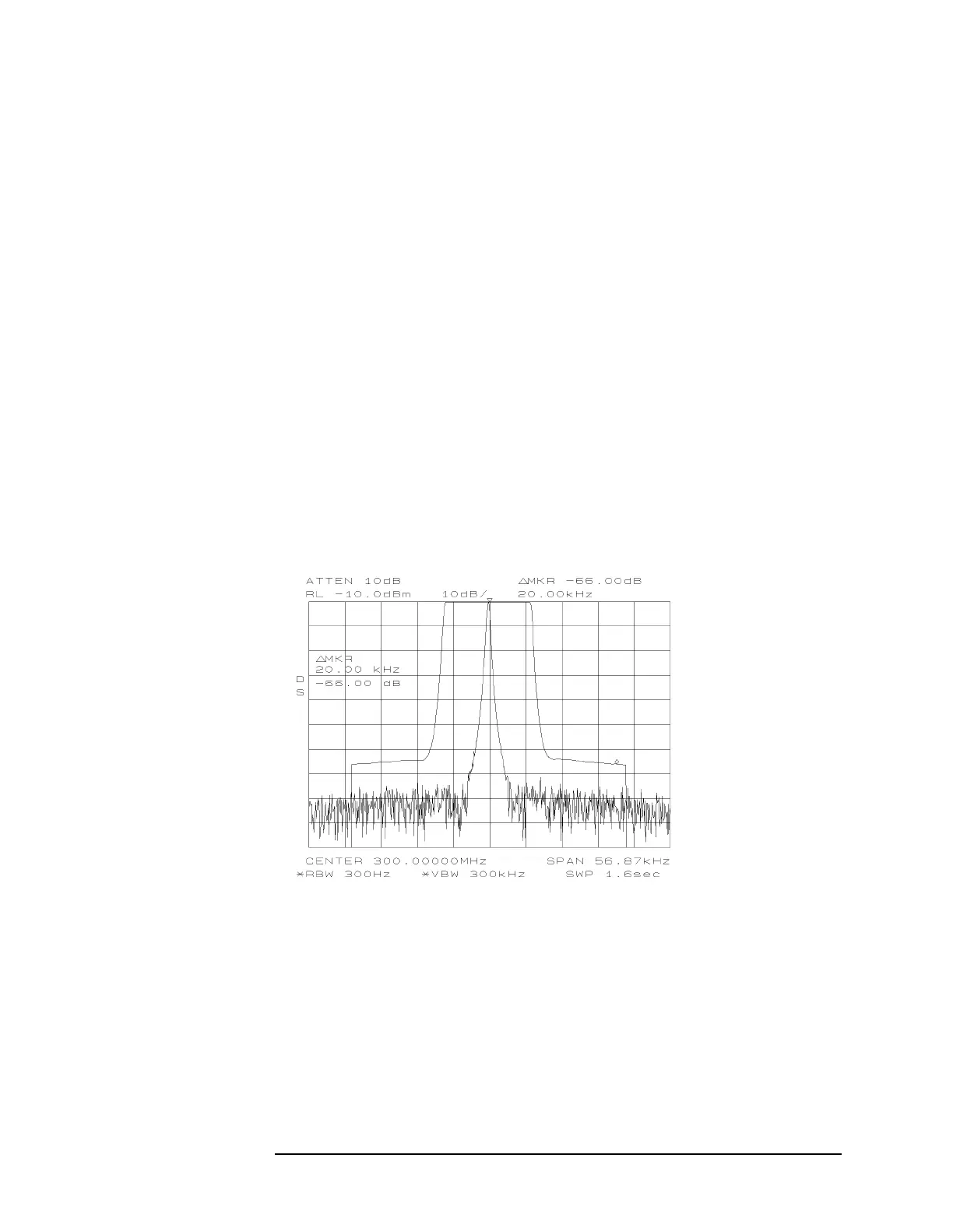

Agilent Technologies 8565EC

Main Chassis Replacement Parts
Item
Description
Part
Number
Quantity
1
Screw-Machine w/Lock-Washer - Pan-HD - M3X0.5 - 8MM-LG 0515-2145 4
5
Cover, A6 Power Supply (Includes Label) 5002-1010 1
6
Screw-Machine - Flat-HD - M3X0.5 - 45MM-LG 0515-2309 3
Main Deck 5002-1008 1
EMI Shield - Main Deck (Not Shown) 5002-1009 1
Screw-Machine - Flat-HD - M3X0.5 - 5MM-LG (Not Shown) 0515-1521 10
15
Front End Deck 5002-4047 1
16
Screw-Machine w/Washer - Pan-HD - M3X0.5 - 8MM-LG 0515-1950 4
17
Screw-Machine - Flat-HD - M3X0.5 - 6MM-LG 0515-1227 2
18
Side Frame 5021-7464 2
19
Screw-Machine - Flat-HD - M4X0.7 - 8MM-LG 0515-1101 12
20
Screw-Machine - Flat-HD - M3X0.5 - 5MM-LG 0515-1521 12
21
Screw-Machine - Flat-HD - M3X0.5 - 6MM-LG 0515-1227 8
22
Screw-Machine - Flat-HD - M3X0.5 - 6MM-LG 0515-1227 5
23
Board Mount 5021-5484 5
24
Hinge Assembly - 2 Board 5062-0750 2
25
Hinge Assembly - 4 Board 5062-0751 2
26
Cable Clamp 5041-7250 1
28
Screw-Machine - Flat-HD - M3X0.5 - 6MM-LG 0515-1227 2
30
Shield Wall - Top 5063-0269 1
31
Shield Wall - Bottom 5063-0268 1
32
Screw-Machine w/Washer - Pan-HD - M3X0.5 - 16MM-LG 0515-0375 2
33
Screw-Machine w/Washer - Pan-HD - M3X0.5 - 40MM-LG 0515-1715 1
14
